Payment & Shipping Terms:
|Speed:||80-180 Rolls/min.||Power:||7.5Kw 220V 50HZ|
|Machine Weight:||1500kg||Machine Size:||7000*1100*1700mm|
220V Toilet Paper Packing Machine,
Toilet Paper Packing Machine PLC Controlled,
PLC Control Tissue Packing Machine

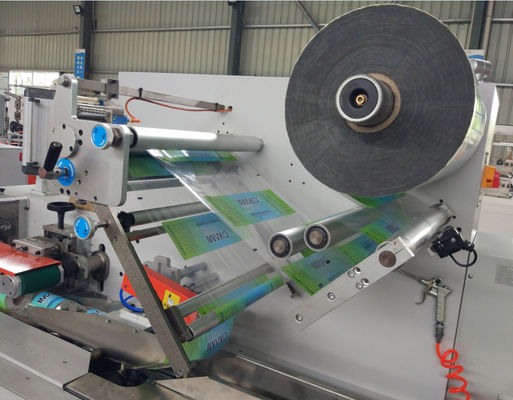

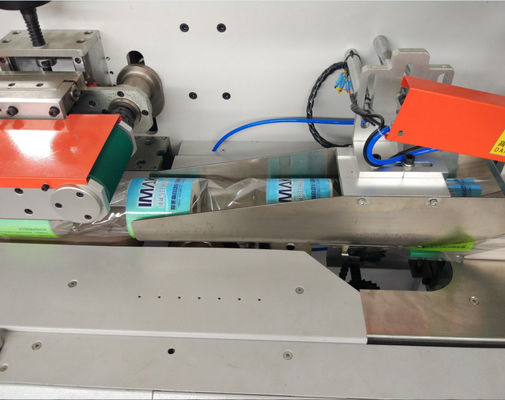

Automatic single roll toilet paper packing machine
XY-503IZ High speed automatic single roll toilet paper packing machine
1. Multi function: Servo controlling, automatic conveying, automatic feeding, automatic sealing, automatic countering.
2. Adopting the advanced PLC computer programming control and employing the liquid crystal text to display parameters, it is with simple set. Moreover, its temperature controlling is more precise so that heating wires and tapes with thermo stability can be protected more efficient.
3. Packing and sealing are pretty and tidy. The machine operated with full-automation. The machine with conveyer can be connected with other machines to form a whole packing line. This allows machine have high capacity and therefore to save the labor and reduce production cost.
4. Easy to maintain, low noise.
5. Touch screen controlling, parameter adjusted in touch screen easily, such as speed, roll size, film size.
6. Electric eyes detecting, stop automatically when failure occur.
7. Independent temperature control.
8. Capacity: 80~180 pack/min
9. Suitable for both core and coreless toilet roll.
10. Comprehensive design, rigid frame, famous brand major components, this allows our machine work steadily & efficiently, and therefore this makes machine have long life.
11. Can be connected with log saw machine and roll multi pack machine to form an automatic processing line.
|Power||7.5Kw 220V 50HZ|
|Packing film material||
1. Film thickness:0．018mm ～0．035 mm
2. Film roller maximum diameter:Φ380mm
3. Film roller inner diameter:Φ75mm～78mm
4. Film maximum width:430 mm
1. Conveyer:90°, S type, U type, line conveyor, belt conveyor, flexible conveyor
2. Date and batch number printer.
