Product Details:
Payment & Shipping Terms:
|
| Width Of Parent Roll Paper: | 1750-2750mm | Speed: | 250-300 M/min |
|---|---|---|---|
| Max. Outer Diameter Of Paper Roll: | 50-600 Gsm | Slitting Width: | Adjustable |
| Inner Diameter Of Paper Core: | 76.2 | Unwinding Unit: | 1-3 Layunwinding Unit |
| Base Paper Core Shaft: | Air-shaft | Rewinding System: | Pneumatic Timing Rewinder |
| Dimensions: | 9500*4000*2300mm | Weight: | 5000~6000KG |
| High Light: | Jumbo Roll Slitting Machine,2750mm Width Roll Rewinder Machine,thermal roll slitting machine |
||

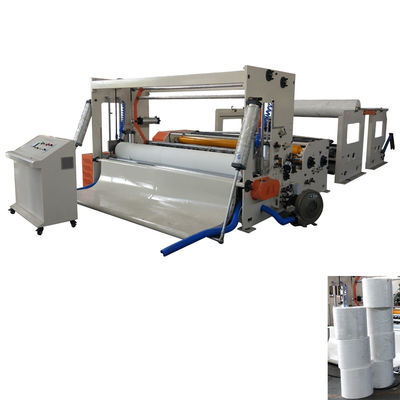

Full automatic high speed jumbo roll tissue slitting and rewinding machine
Jumbo roll slitting and rewinding machine is the raw material at high speed slitting system, from single ply can be slit and rewinding into two, three or four ply paper with various widths, for the production of napkin, hankies, facial or sanitary napkins. The machine is featured of good performance, compact structure, and stable running, and easy operation. The finished products have good winding profiles, which make it a good equipment for the paper mills and textile factories, and a high reputation from the customers.
product description
| width of parent roll paper | 1750-2750mm |
| speed | 250-300 m/min |
| max. outer diameter of paper roll | 50-600 gsm |
| slitting wildth | adjustable |
| inner diameter of paper core | 76.2 |
| unwinding unit | 1-3 layunwinding unit |
| base paper core shaft | air-shaft |
| rewinding system | pneumatic timing rewinder |
| dimensions | 9500*4000*2300mm |
| weight | 5000~6000KG |
