Payment & Shipping Terms:
|Machine Speed:||200-230m/min||Dimension:||Depend On The Model|
|Machine Power:||380v 50hz 14-45KW||Machine Weight:||6-15T|
|Unwind Stands:||1 Or 3 Stands||Raw Material:||Jumbo Roll Paper|
|Perforation Distance:||4 Anvil Blades||Product Name:||Toilet Roll Paper,maxi Roll Paper|
|Color:||White||Embossing Roller Material:||Steel|
|Color Printing:||1-3 Colors To Chioce|
PLC Controlled Toilet Tissue Paper Machine,
Toilet Tissue Paper Machine 230M/Min,
PLC Controlled Tissue Paper Production Machine

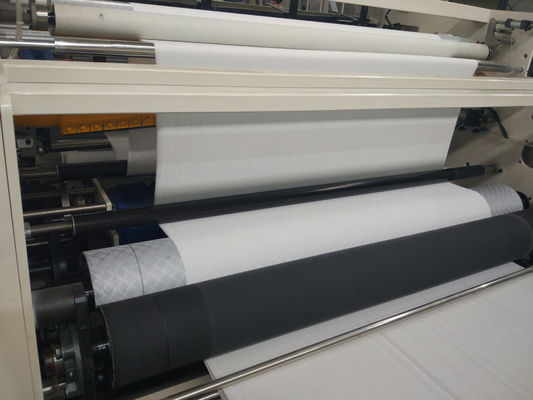

Automatic toilet paper rewinding machine is used to produce toilet paper rolls and kitchen tissue rolls. The machine is equipped with a central feeding device, with and without core. The raw material is big roll after full embossing or edge embossing, then punching device, end cutting and tail glue to become a log. If customers need, we can add color printing equipment, it is not recommended to use color printing on toilet paper. They can then be used with cutting machines and packaging machines to produce finished products. This machine adopts PLC control, human-machine touch screen operation, the whole process is automatic, easy to operate, low labor cost, and fast. This machine can be specially manufactured according to customers' requirements.
Function and Features:
1. Automatic core feeding system, automatically push out the logs after rewinding, then collect the new ones.
2. Automatic trimming, core feeding, glue spraying and sealing are synchronized simultaneously. Leave a 10-18mm tail for easy rewinding, which reduces short cut waste and saves costs.
3. Adopt advanced international PLC programmable control technology, human-machine interface operation, data setting and fault parameter touch screen.
4. Embossing unit: a point-to-point embossing roller is used to make the two layers fit well, the paper is smooth, and the pattern is clear
5. The pressure switch is used in the paper thread, which is convenient and safe to operate.
Video Link: https://youtu.be/7k5naqyUNz4
|perforation distance||4 anvil blades|
|unwind stands||1 or 3 stands|
|main power||380v 50hz 14-45KW|
|dimension||depend on the model|
|Raw material||jumbo roll paper|
|Product name||toilet roll paper and maxi roll paper|
|size||depend on the type|
|Embossing roller material||steel|
|color printing||1-3 colors to chioce|
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Welcome to contact us to get more details !
We can design the machine according to your request.
