|Model:||XY-TQ-B||Jumbo Roll Width:||1750~2800mm (Other Size Can Be Specified)|
|Jumbo Roll Diameter:||Φ1200mm(Other Size Can Be Specified)||Finished Product Diameter:||Φ80~φ280mm|
|Production Speed:||180-230m/min||Model-Cutting:||XY-AI-400 Toilet Paper Band Saw Cutting Machine|
|Cutting Speed:||80～100cuts/minute||Model-Packing:||XY-AI-398A Semi Automatic Multi Rolls Toilet Paper Packing Machine|
|Speed:||8-12 Bundling Bag/min||Single Roll Size:||Diameter：Ø90-120mm Height:90-140mm|
CE Toilet Paper Production Line,
Jumbo Roll Toilet Paper Production Line,
CE Toilet Paper Production Machine
Fully Automatic Toilet Paper and Kitchen Towel Paper Production Line,Toilet Paper Production Lin
XY-TQ-A-G Fully Automatic Toilet Paper Production Line
This production line consists of Fully Automatic Rewinding Machine, automatic band saw machine and semi automatic bundle packing machine. From the jumbo roll into the finished rolls, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It’s best choice for the producing hygienic paper products.
XY-TQ-B Full automatic toilet paper and kitchen towel machine
Automatic toilet paper rewinding machine is for toilet paper roll processing. Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients’ requirements.
The production process is: Unreeling — Embossing — Perforating— Lamination— Rewinding— Tail-gluing— Edge trimming---Automatic core loading.
Video Link: https://youtu.be/rNt18U-gzwM
Function and Features:
1. Automatic core feeding system, automatic log pusher after rewinding, then rewinding the new log again.
2. Automatic edge-trimming, core feeding, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
3. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
4. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.
6. Embossing Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns
7. Adopt jogging switches for wearing the paper, easy and safe to operate.
|Jumbo Roll Width||1750mm (Other size can be specified)|
|Jumbo Roll Diameter||Φ1200mm(Other size can be specified)|
|Jumbo Roll Inner Core Diameter||3inches(76.2mm)|
|Perforation Distance||4 anvil Blades(115mm.,230mm)(Other size can be specified)|
|Finished Product Diameter||Φ80~φ280mm|
|Finished Product Inner Diameter||φ38~φ76mm|
|Jumbo roll paper stand||1 or 3 Stands(Need to be specified)|
|Pneumatic System||0.5~0.8MPA(Provide by user)|
|Weight||About 12T(wall board structure)(Other size can be specified)|
|Jumbo Roll Layers||1~3plys,14~30gsm Toilet paper or kitchen towel|
|Edge-Line Embossing(can be specified)||Steel to steel (Pneumatic Control)|
|Embossment (can be specified)||Steel to Rubber, Double Sets|
XY-AI-400 Toilet paper band saw cutting machine
Technical performance characteristic:
The equipment is operated by using PLC program control, big screen true color human﹣computer interface. The precise servo control feed length, electromechanical integration control and other international advanced technology con automatically detect each key action, has good fault information prompt system, make the whole production line achieving the best working state.
This band saw is good for new paper factory to cut toilet paper roll and kitchen towel.
Feature and function:
1, When the paper cannot be cut down, the equipment will automatically stops and gives an alarm;
2, The high precision servo system is used in the feed motor servo system, to ensure the quality of the finished product;
3, The equipment automatically calculate the quantity of the finished product being cut; according to the raw material and the length of the finished product;
4, When data input is incorrect, the equipment breaks off and prompts to adjust on the interface;
5, The waste paper head and paper end can be automatically sorted;
6, The automatic sharpening knife system is used in the equipment, can adjust the sharpening knife system according the requirement of paper being cut, which increase the cutting life;
7, The sharp steel wheel is used in the sharpening knife system, which increase the sharpening knife efficiency
|Cutting blade||band saw blade(Size 3850*40*0.6)|
|Toilet log length||≦2850mm(it can be made according to customer request)|
|Finished toilet roll length||≦300mm|
|Finished toilet roll diameter||70-130mm|
|Power supply||5kw 380V 50H 3 phase 4line|

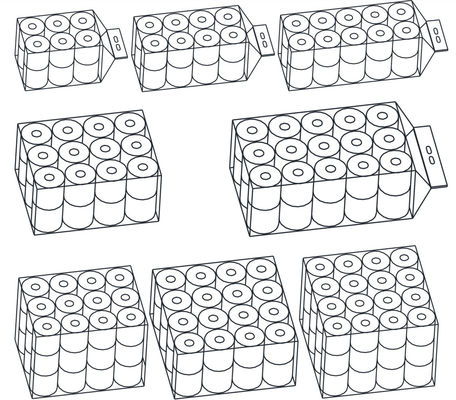

XY-AI-398A Semi automatic multi rolls toilet paper packing machine
1. Multi function: automatic conveying, single head operation, automatic feeding, automatic sealing, automatic countering.
2. Adopting the advanced PLC computer programming control and employing the liquid crystal text to display parameters, it is with simple set and water cooling control. Moreover, its temperature controlling is more precise so that heating wires and tapes with thermo stability can be protected more efficient. The machine use the servo motor to push the products to the bags, it causes to locating the products more accurately.
3. Packing and sealing are pretty and tidy. The machine can be operated with full-automation and semi-automation. The machine with conveyer can be connected with automatic toilet roll packing machine with conveyer. This allows the machine have high capacity and therefore to save the labor and reduce production cost.
4. Capacity: 8-12 bundling bag/min, 1 labor only to pack.
5. Suitable for core or coreless toilet roll. The machine cannot proofread color code automatically.
6. Comprehensive design, rigid frame, and imported major component, this allows our machine work steadily& efficiently, and therefore this makes our machine have long life.
|Power supply||4Kw 380V 50HZ|
|Speed||8-12 bundling bag/min|
|Single roll size||Diameter:Ø90-120mm Height:90-140mm|
