Product Details:
Payment & Shipping Terms:
|
| Condition: | New | After-sales Service Provided: | Video Technical Support |
|---|---|---|---|
| Certification: | CE | Voltage: | 380 V 50 Hz |
| Weight: | 7000KG | Dimension(l*w*h): | 7000*4000*1900mm |
| Warranty: | 1 Year | Power(w): | 14 KW |
| Product Type: | Toilet Tissue | Name: | Full Automatic Toilet Paper Machine |
| Production Capacity: | 200m/min | Usage: | Making Tpilet Paper |
| Automatic Grade: | Automatic | Capacity: | 2 Tons Per Day |
| High Light: | coreless toilet paper cutting machine,Xinyun Toilet Paper Cutting Machine,Paper Roll Rewinding Machine |
||

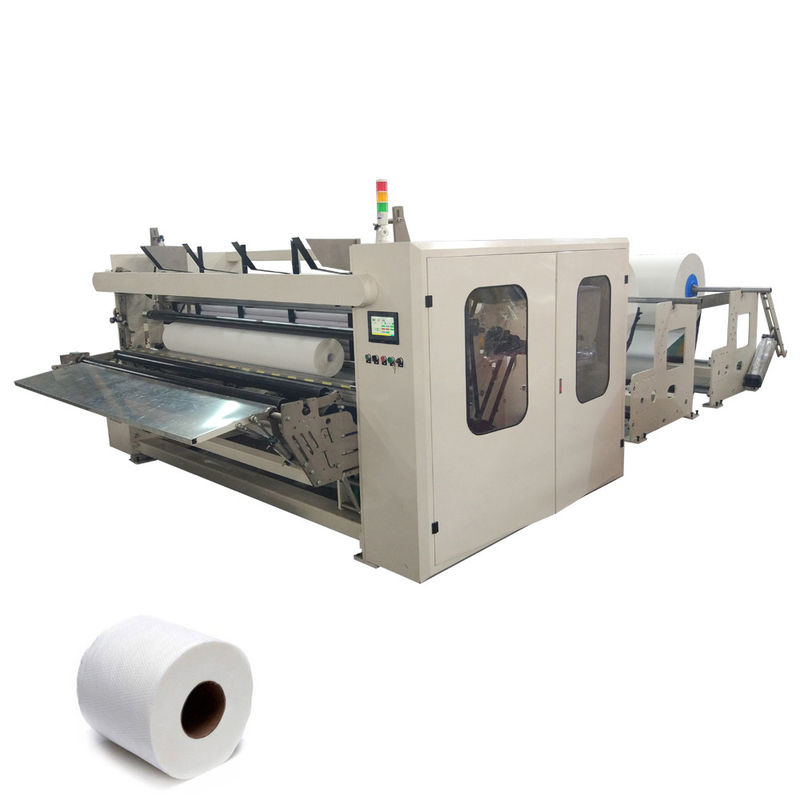

XY-TQ-B Full Automatic Small Toilet Paper
Kitchen Towel Maxi Roll Paper Rewinding Machine
Outline
Automatic toilet paper rewinding machine is for toilet paper roll processing. Machine have core feeding unit, can do both
with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.
Video Link: https://youtu.be/A1aCcLibP_w
Feature and Function
1. Automatic core feeding system, automatic log pusher after rewinding, then rewinding the new log again.
2. Automatic edge-trimming, core feeding, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy
to rewind again, so reducing shortcut waste and save the cost.
3. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
4. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.
6. Embossing Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns.
How Jumbo Roll Go Through
Product Parameters
| Jumbo roll max width | 1800mm (Other size can be specified) |
| Jumbo roll diameter | max.1200mm |
| Jumbo roll inner core diameter | 3 inches(76.2mm) |
| Finish product diameter | 90-280mm |
| Finish product Inner core diameter | 38-76mm |
| Perforation distance | 120-150mm |
| Production speed | 180-230m/min |
| PLC | INVT |
| Pneumatic system |
3HP Air Compressor Minimum Pressure: 5kg/cm 2Pa (Provide by user) |
| Rewinding Unit | With core or coreless |
Toilet Paper Making Machine Production Line
Video Link: https://youtu.be/IDh-f44sxXs
Why choose machines from Fujian Xinyun Machinery Development Co.,Ltd?
1.Good quality of machine with reasonable price.
2.Good service:Any question from customer will by replied within 24 hours.
After Sales Service
For all the machines we sell, we will offer one-year guaranteen for free and all life-long maintenance.
We deliver a USB dish of Operation Video with machine, it will help customers to work the machine easily.
After the machines arrive, the sellers shall send technicians to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportation and accommodation in buyer's city.
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.
Professional supplier of:
1) Toilet Paper Machine (1200mm-2800mm width of parent roll, Customized Service)
2) Roll Kitchen Paper Towel Machine (1200mm-2800mm width of parent roll, Customized Service)
3) Facial Tissue Machine (2-14 output lines)
4)Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold types)
5) Hand Towel Paper Machine(C-fold, V-fold, Nfold or Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
