Payment & Shipping Terms:
|Speed:||200-230 M/min||Embossing Device:||Steel To Rubber|
|Color:||Milky||After-sales Service Provided:||Engineers Available To Service Machinery Overseas|
|Raw Material:||Jumbo Roll Paper||Function:||Unreeling — Embossing — Perforating— Lamination— Rewinding— Tail-gluing— Edge Trimming---Automatic Core Loading.|
|Type:||Rewinding Machine||Name:||Automatic Rewinding Small Toilet Paper Making Machine|
|Warranty:||1 Year||Usage:||Toilet Paper,kitchen Towel Paper And Maxi Roll Paper|
log pusher Toilet Tissue Paper Making Machine,
Shortcut Waste Toilet Tissue Paper Making Machine,
tails gluing corrugated paper making machine

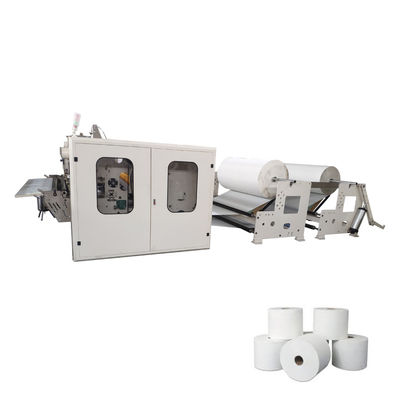

Automatic rewinding small toilet paper making machine XY-TQ-B
Automatic toilet paper rewinding machine is for toilet paper roll processing. Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.
Function and Features:

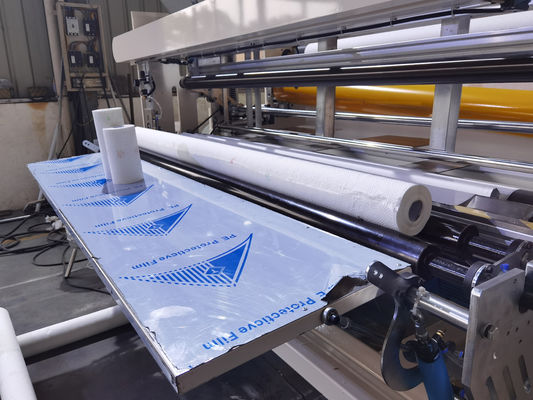

1. Automatic core feeding system, automatic log pusher after rewinding, then rewinding the new log again.
2. Automatic edge-trimming, core feeding, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
3. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
4. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.
6. Embossment Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns
7. Adopt jogging switches for wearing the paper, easy and safe to operate.
Video Link: https://youtu.be/9XhzBwov320
|The width of jumbo roll paper||Φ1200mm|
|Jumbo roll inner core diameter||3inches(76.2mm)(Other size can be specified)|
|Finish product Inner core diameter||Φ80-φ280mm|
|Finish product Inner core diameter||φ38-φ76mm|
|Perforation Distance||4 anvil Blades 90-150mm;2 anvil Blades 180-300mm|
|Unwind Stands||2 or 3 Stands(Need to be specified)|
|Pneumatic System||3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user)|
|Driving system||Timing belt|
Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a DVD of Operation Video with machine,it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need).
And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food ,transportations and accommodation in buyer's city.
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2)Kitchen Towel Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Welcome to contact us to get more details !
We can design the machine according to your request.
