| Packing Speed: | 50-80 Boxes/min | Packing Material Box Requirement: | 300-450 G/m² |
|---|---|---|---|
| Packing Material Size Of Box: | (100-230)*(30-120)*(20-90)mm | Air Compressor Air Supply: | 0.5-0.8 Mpa |
| Air Compressor Air Consumption: | 180-210L/min | Power: | 7.5KW 380V 50HZ |
| Overall Dimension: | 3400*1400*1700mm | Weight: | 2000kg |
| High Light: | photoelectricity supervision Tissue Paper Packaging Machine,PLC Control Tissue Paper Packaging Machine,corrugated box strapping machine |
||

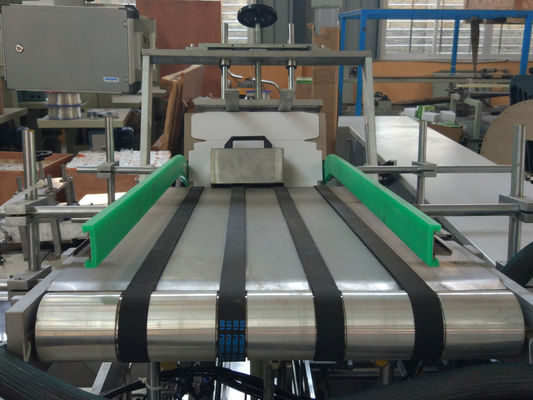

Full automatic high speed facial tissue single box packing machine
It is suitable for packing facial tissue paper and other related similar content compact with automatic leaflet folding, box opening and loading, then sealing the box. It adopts PLC control, photoelectricity supervision to coordinate with every parts. Automatic stop and trouble display when machine running exceptional in order to solving troubles in time. This machine can be used separately, and also can connect with facial tissue log saw cutting machine on line.
| packing speed | 50-80 boxes/min |
| packing material box requirement | 300-450 g/m² |
| packing material size of box | (100-230)*(30-120)*(20-90)mm |
| air compressor air supply | 0.5-0.8 mpa |
| air compressor air consumption | 180-210L/min |
| power | 7.5KW 380V 50HZ |
| overall dimension | 3400*1400*1700mm |
| weight | 2000kg |
