Product Details:
Payment & Shipping Terms:
|
| Raw Material Width: | 2800 Mm | Raw Material Diameter: | 1200 Mm |
|---|---|---|---|
| Speed: | 200-300 M/min | Finished Products Diameter: | φ1200 Mm |
| Slitting Width: | Adjustable | Finished Products Core Diameter: | 76.2 Mm |
| Raw Material Core Diameter: | 76.2mm(Please Specify Other Specifications) | Unwinding Unit: | 2layer(Can Be Appointed) |
| Base Paper Core Shaft: | Air-shaft | Rewinding System: | Pneumatic Timing Rewinder |
| Slitting System: | Automatic Slitting Control | Discharging Unit: | Automatic Discharging |
| Edge Cutting Unit: | 2.2KW Vacuum Suction Edge Cutting 2.2 KW | Power: | Frequency Conversion Speed Regulate 15KW |
| Pneumatic System: | 3HP Air Compressor, Min. Pressure 5kg/cm2pa ( Provide By User) | Dimensions(L X W X H)(mm): | 9500X4000X2300 |
| Weight: | 5000~6000kg | ||
| High Light: | Pneumatic Timing Toilet Tissue Paper Making Machine,15KW Toilet Tissue Paper Making Machine,jumbo roll automatic tissue paper making machine |
||

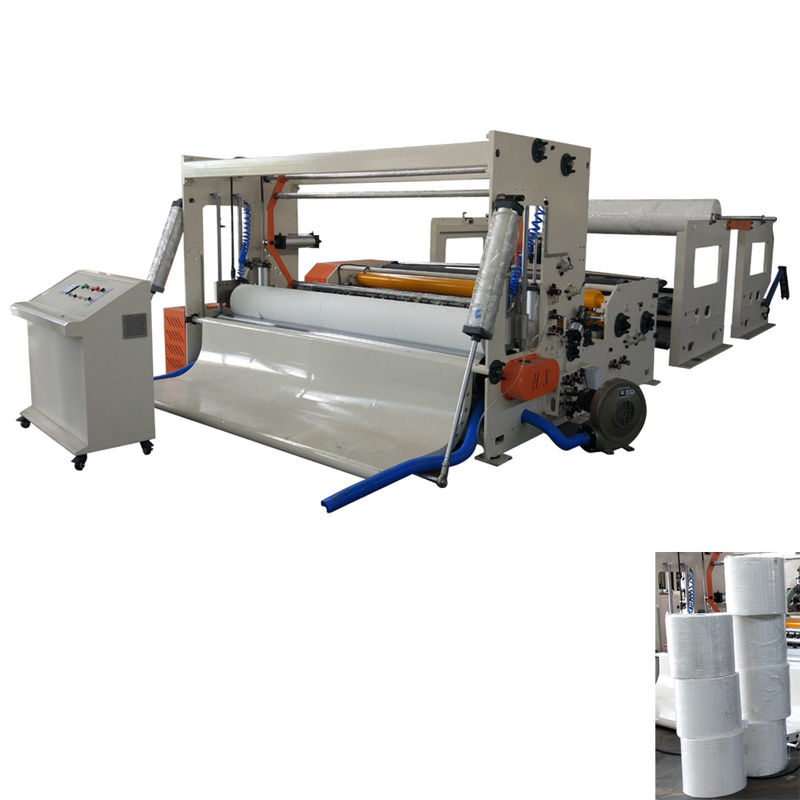

XY-XX-A High speed Full automatic jumbo roll slitting and rewinding machine
High speed full automatic jumbo roll slitting and rewinding machine is the raw material at high speed slitting system, from single ply can be slit and rewinded into two, three or four ply paper with various widths, for the production of napkin, hankies, facial or sanitary napkins. The machine is featured of good performance, compact structure, and stable running, and easy operation. The finished products have good winding profiles, which make it a good equipment for the paper mills and textile factories, and a high reputation from the customers.
Main function and feature
1. Adopt the widen belt on back-stand to increase the friction when feeding paper.
4. With the function of pneumatic paper loading, edge vacuum suction.
5. Automatic finished roll discharging, Solve the deformation caused by falls paper phenomenon, save the labor force. (Optional)
6. Easy operation, the finished products have good winding profiles and clean cutter.
Supply equipment for semi-finished products after raw paper slitting:
XY-OQ-7000A Automatic napkin tissue machine
XY-GU-20A 2 lines edge embossing facial tissue making machine
WORKSHOP
PACKING DELIVERY
| SAY USD DOLLAR ONLY. (FOB Xiamen Price USD) | ||
|
Contact Person: Kane Pan
Tel: +8615259711730
