Xinyun Fault Detection Handkerchief Making Machine 2.2 KW Tissue Roll Making

I'm Online Chat Now
Certification
China Fujian Xinyun Machinery Development Co., Ltd. certification
You have very professional products and fast reply, and the toilet paper rewinding machine's quality is super good. Even better than we ordered from Portugal!

—— Mark

You have given us a suitable customized plan, which makes my workers feel great. Hope we can have another chance to cooperate.

—— Luna

Your delivery date is on time. After we met some small problems, you gave us useful guidance to solve those problems. Thanks a lot!

—— Leo Hammand

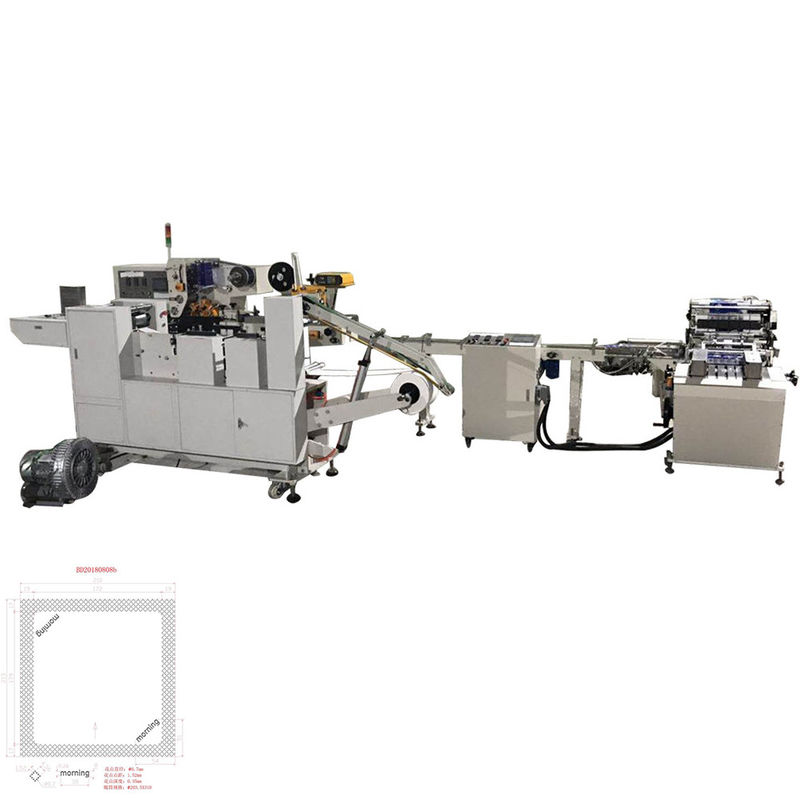

Xinyun Fault Detection Handkerchief Making Machine 2.2 KW Tissue Roll Making

Xinyun Fault Detection Handkerchief Making Machine 2.2 KW Tissue Roll Making
Xinyun Fault Detection Handkerchief Making Machine 2.2 KW Tissue Roll Making Xinyun Fault Detection Handkerchief Making Machine 2.2 KW Tissue Roll Making

Large Image :  Xinyun Fault Detection Handkerchief Making Machine 2.2 KW Tissue Roll Making Get Best Price

Product Details:
Place of Origin: Fujian
Brand Name: Xinyun
Certification: CE
Model Number: XY-NGU-21C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: FOB XIamen Price53000-56000USD
Delivery Time: 50-60days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 200sets/year
Detailed Product Description
Speed Of The Separator: 60 Bags/min Programming Control: PLC
Parameter Setting: Touch Screen Raw Material: 13-25gm 1-3plies
Width Of Jumbo Roll: 210mm Outer Dia. Of Jumbo Roll: Max. 1200mm
Inner Dia. Of Jumbo Roll Core: 76.2mm Warranty: 1 Year
High Light:

Fault Detection Handkerchief Making Machine

,

Xinyun Handkerchief Making Machine

,

2.2 KW tissue roll making machine

Hot selling pocket paper handkerchief machine production line XY-NGU-21C

Outline

Automatic handkerchief production line is consists of four parts: Handkerchief Folding Machine, Separating Unit, Single Bag Packing Machine and Multiple Bags Packing Machine.

Raw material from jumbo roll first through color printing unit(optional), Then embossing and folding into handkerchief. And then separated into different sets by separating unit, then go to the single bag packing and multiple bags packing.

This line realizes the whole production process is automatic. It greatly improve the efficiency and reduce labor cost and easy to operate.

It adopts failures tracing and alarm system, failures will be found and settle immediately, which save the lost in a maximum way. Handkerchief folding size, tissue number of each bag and multiple packing bag number all can be made according to clients’ requirement.



Product Parameters

Overall dimension(L*W*H) 3850*692*1360mm
Width of jumbo roll paper 180-210mm
Diameter of jumbo roll paper Max. 1500mm
Diameter of jumbo roll paper inner core 76mm
Open size of finished products 200/205/210mm
Folded size of finished products (65-115)*(50-53)mm
Embossing Unit Steel to Rubber, Steel to Steel(Optional)
Separating piece 8/9/10
Speed 70-75 bags/min
Weight 1000kg
Power 2.2 KW
Blower Power 5.5 KW


Video Link: https://youtu.be/rKjM-Nc0bVo

Xinyun Fault Detection Handkerchief Making Machine 2.2 KW Tissue Roll Making 0

Feature and Functions

1. Machine controlled by Delta PLC , HMI
2. Perfect fault detection tracking system, high precision photoelectric tracking system
3. Transmission system adopts advanced frequency control of motor speed control
4. With intelligent shard system, realizing automatic folding, reduce the production cost
5. The gear ratio system, eliminating the paper and packaging machine pushing rod collision

6. Adopt independent operation control system, no need to modify packaging machine, are highly combination

7. The adsorption type folding, beautiful accurate control to ensure that product specifications

Detailed Pictures

Xinyun Fault Detection Handkerchief Making Machine 2.2 KW Tissue Roll Making 1


Finished Products

Xinyun Fault Detection Handkerchief Making Machine 2.2 KW Tissue Roll Making 2

Why choose machines from Fujian Xinyun Machinery Development Co.,Ltd?
1.Good quality of machine with reasonable price.
2.Good service:Any question from customer will by replied within 24 hours.
3.For all the machines we sell, we will offer one-year guaranteen for free and all life-long maintenance.
4.We deliver a USB dish of Operation Video with machine, it will help customers to work the machine easily.
5.After the machines arrive, the sellers shall send technicians to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportation and accommodation in buyer's city.
