Xinyun PLC Toilet Paper Production Line Multi Rolls Pleating paper 18KW

Xinyun PLC Toilet Paper Production Line Multi Rolls Pleating paper 18KW
Xinyun PLC Toilet Paper Production Line Multi Rolls Pleating paper 18KW Xinyun PLC Toilet Paper Production Line Multi Rolls Pleating paper 18KW Xinyun PLC Toilet Paper Production Line Multi Rolls Pleating paper 18KW Xinyun PLC Toilet Paper Production Line Multi Rolls Pleating paper 18KW Xinyun PLC Toilet Paper Production Line Multi Rolls Pleating paper 18KW

Large Image :  Xinyun PLC Toilet Paper Production Line Multi Rolls Pleating paper 18KW Get Best Price

Product Details:
Place of Origin: Fujian
Brand Name: Xinyun
Certification: CE
Model Number: XY-TQ-A-G
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: FOB XIamen Price40000-190000USD
Packaging Details: Spraying antirust oil on machine surface and cover PE film,then packed by seaworthy Export Packing Wooden pallet, ensure that the goods will safely arrive at the erection or construction site without any damage.
Delivery Time: 60-70days
Payment Terms: T/T
Supply Ability: 200sets/year
Detailed Product Description
Voltage: 380V/50HZ Condition: New
Warranty: One Year After-sales Service Provided: Video Technical Support
Certification: CE Weight: Depend On Machines
Product Type: Toilet Tissue,kitchen Towel Dimension(l*w*h): Depend On Machines
Processing Type: Toilet Paper Machine
High Light:

Xinyun Toilet Paper Production Line

,

PLC Toilet Paper Production Line

,

18KW pleating paper disposal making machine

            XY-TQ-A-G Automatic Multi Rolls Toilet

Paper Kitchen Towel Paper Making Machine Production Line

Outline
This production line consists of Fully Automatic Rewinding Machine, automatic band saw machine and semi automatic bundle packing machine. From the jumbo roll into the finished rolls, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It's best choice for the producing hygienic paper products.



Video Link: https://youtu.be/SYuq8fvhCaw





XY-TQ-B Full automatic toilet paper and kitchen towel machine
Automatic toilet paper rewinding machine is for toilet paper roll processing. Machine have core feeding unit, can do both
with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.


Video Linkhttps://youtu.be/g39DhZtDHtU

Xinyun PLC Toilet Paper Production Line Multi Rolls Pleating paper 18KW 0

Xinyun PLC Toilet Paper Production Line Multi Rolls Pleating paper 18KW 1

Product Parameters

Model
XY-TQ-B
Jumbo Roll Width
1750mm (Other size can be specified)
Jumbo Roll Diameter
max. 1200mm(Other size can be specified)
Jumbo Roll Inner Core Diameter
3 inches(76.2mm)
Perforation Distance
4 anvil Blades(115mm.,230mm)(Other size can be specified)
Finished Product Diameter
80-280mm
Finished Product Inner Diameter
38-76mm
20Production Speed
200-230m/min
Program Controller
PLC
Jumbo roll paper stand
1 or 3 Stands(Need to be specified)
Pneumatic System
0.5-0.8MPA(Provide by user)
Main Power
18KW
Overall Dimension
10000*3000*2000(L*W*H)
Weight

About 12T

(wall board structure)(Other size can be specified)

Jumbo Roll Layers
1~3plys,14~30gsm Toilet paper or kitchen towel
Edge-Line Embossing
(can be specified)
Steel to steel
(Pneumatic Control)
Embossment (can be specified)
Steel to Rubber, Double Sets
Voltage
380V 50HZ



Feature And Functions

1. Automatic core feeding system, automatic log pusher after rewinding, then rewinding the new log again.
2. Automatic edge-trimming, core feeding, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy
to rewind again, so reducing shortcut waste and save the cost.
3. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
4. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.
6. Embossing Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns
7. Adopt jogging switches for wearing the paper, easy and safe to operate.

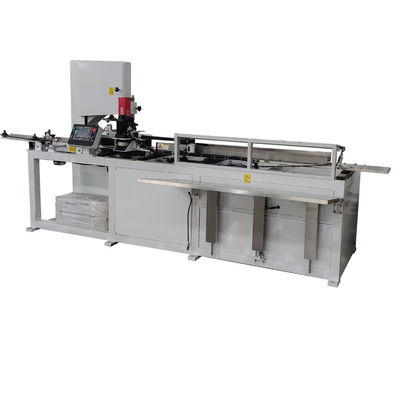

XY-AI-400 Toilet paper band saw cutting machine
The equipment is operated by using PLC program control, big screen true color human-computer interface. The precise servo control feed length, electro-mechanical integration control and other international advanced technology con automatically detect each key action, has good fault information prompt system, make the whole production line achieving the best working state. This band saw is good for new paper factory to cut toilet paper roll and kitchen towel.


Video Link: https://youtu.be/bgrCNrdUhV0
Xinyun PLC Toilet Paper Production Line Multi Rolls Pleating paper 18KW 2

Function And Features
1. When the paper cannot be cut down, the equipment will automatically stops and gives an alarm.
2. The high precision servo system is used in the feed motor servo system, to ensure the quality of the finished product.
3. The equipment automatically calculate the quantity of the finished product being cut; according to the raw material and the length of the finished product.
4. When data input is incorrect, the equipment breaks off and prompts to adjust on the interface.
5.The waste paper head and paper end can be automatically sorted.
6. The automatic sharpening knife system is used in the equipment, can adjust the sharpening knife
system according the requirement of paper being cut, which increase the cutting life.
7. The sharp steel wheel is used in the sharpening knife system, which increase the sharpening knife efficiency.
Technical Parameters
Cutting speed
80~100cuts/minute
Cutting blade
band saw blade(Size 3850*40*0.6mm)
Toilet log length
<=2850mm(it can be made according to customer request)
Finished toilet roll length
<=300mm
Finished toilet roll diameter
70-130mm
Cutting tolerance
±1.5mm
Power supply
5kw 380V 50H 3 phase 4line
Overall size
2800x1500x2100mm
Machine weight
1100KG

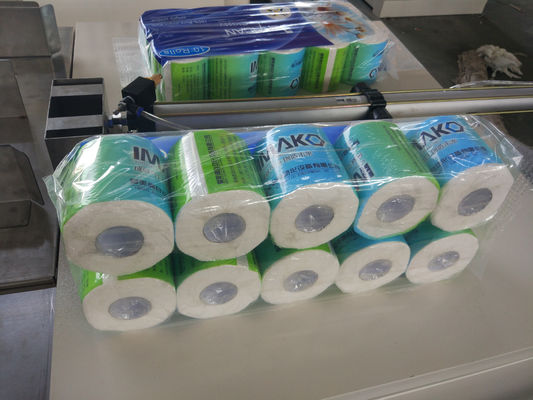

XY-AI-398A Semi automatic multi rolls toilet paper packing machine
This machine work with toilet paper rewinding machine, it is customized, can special made to meet different market requirements. It's easy to operate: Insert the prefabricated bag into output hole, press the jog switch, it will automatically put rolls into bag, meanwhile cutting and sealing.

Video Link:
https://youtu.be/4La8KE7zwEw
Xinyun PLC Toilet Paper Production Line Multi Rolls Pleating paper 18KW 3
Function and Features
1. Multi function: automatic conveying, single head operation, automatic feeding, automatic sealing, automatic countering.
2.Adopting the advanced PLC computer programming control and employing the liquid crystal text to display parameters, it is with simple set and water cooling control. Moreover, its temperature controlling is more precise so that heating wires and tapes with thermo stability can be protected more efficient. The machine use the servo motor to push the products to the bags, it causes to locating the products more accurately.
3. Packing and sealing are pretty and tidy. The machine can be operated with full-automation and semi-automation. The machine with conveyor can be connected with automatic toilet roll packing machine with conveyor. This allows the machine have high capacity and therefore to save the labor and reduce production cost.
4. Capacity: 8-12 bundling bag/min, 1 labor only to pack.
5. Suitable for core or coreless toilet roll. The machine cannot proofread color code automatically.
6. Comprehensive design, rigid frame, and imported major component, this allows our machine work steadily and efficiently, and therefore this makes our machine have long life.

Technical Parameters
Model
XY-AI-398A
Air supply
0.6Mpa
Power supply
4Kw 380V 50HZ
Speed
8-12 bundling bag/min
Single roll size
Diameter:90-120mm
Height:90-140mm
Bundling Size(L*W*H)
(360-650)*(180-240)*(90-140)mm
Machine size(L*W*H)
5000*1000*1500mm



XY-SD-B Automatic Roll Core Making Machine

Roll core machine is for making the paper core inside the toilet paper roll. It consists of three parts: raw material stand, glue unit, rewinding and cutting unit. It can make different thickness and different diameter paper core by changing the model. This machine easy to operate, running stable, can work with toilet paper rewinding machine.
Video Linkhttps://youtu.be/RDqnvwmzsvQ
Xinyun PLC Toilet Paper Production Line Multi Rolls Pleating paper 18KW 4

Function and Features
1. Inverter control to ensure the accuracy of the length of paper tube.
2. Automated online on plastic, paper tube and cut off.
3.Product diameter and length can be customized according to customer needs.
4. Products are widely used in toilet paper. Plastic and textile industry.
5. The machine has reasonable design. operation simple and convenient maintenance.
Technical Parameters
Production speed
15 ~ 20m / minutes
Kraft paper width
50-105 mm
Paper Tube diameter
20mm~100mm (can be customized)
Paper tube layers
2 ~ 30 layers
Paper grams amount
150-400 gsm
Reel Length
800-3000 mm
Defect rate
≤2%
Power
4.5KW 380V 50HZ
Equipment Size(L*W*H)
main machine: 2950*1700*1800mm
glue buckets device: 1250*850*1200mm
Weight
1500Kg




After Sales Service:

Why choose machines from Fujian Xinyun Machinery Development Co.,Ltd?
1.Good quality of machine with reasonable price.
2.Good service:Any question from customer will by replied within 24 hours.
For all the machines we sell, we will offer one-year guaranteen for free and all life-long maintenance.
We deliver a USB dish of Operation Video with machine, it will help customers to work the machine easily.
After the machines arrive, the sellers shall send technicians to install the production line(if need).
And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportation and accommodation in buyer's city.
