Xinyun Rerolling Toilet Tissue Paper Making Machine Toilet Roll Converting

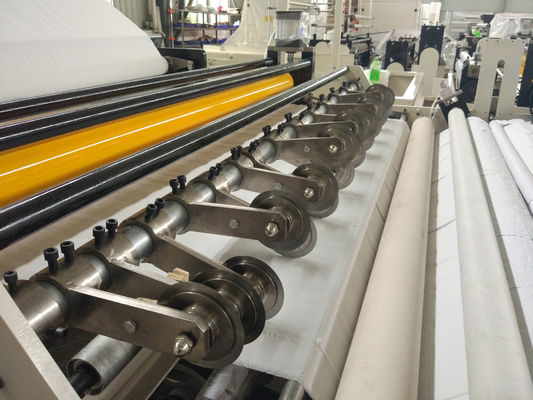

XY-TQ-G Jumbo Roll Slitting And Rewinding Toilet Paper Machine

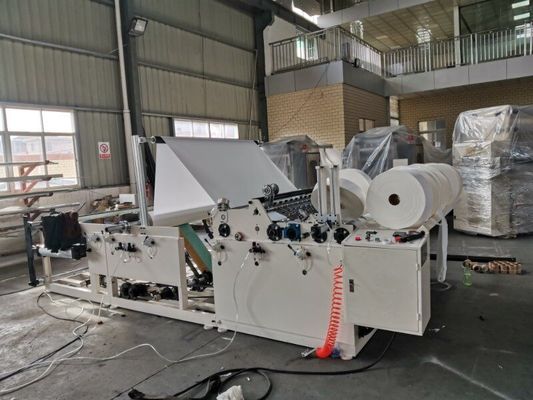

Automatic Wrapper-type High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi

roll processing. Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients’ requirements.

Functions and Features

1．This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high speed, and noiseless.

2．Perforation distance is adjustable to meet different distance needs.

3．Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.

4． Edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.

5．Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.

6． Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.

7． Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted independently.

8． Adopt jogging switches for wearing the paper, easy and safe to operate.

Technical Parameter

VIDEO LINK : https://youtu.be/uuKCizHqB1Q

--------------------------------------------------------------------------------------------------------------------------------------------------------

WORKSHOP

PACKING AND DELIVERY
