Product Details:
Payment & Shipping Terms:
|
Machine Model: | XY-GU-20A | Folded Size Of Finished Products: | 100*(120-210)±2mm |
---|---|---|---|
Unfold Size Of Finished Products: | 200*210±2mm | Pneumatic System: | 3 HP Air Compressor ,mini Pressure 5kg/cm2PA |
Daily Output (8 Hours): | 2000-3000Kg | Cutting Machine: | XY-GU-281 |
Operating Speed: | 20~120cut/min | Paper Cutting Circular Knife Top Speed: | 980R/min |
Packing Machine: | XY-BT-298 | Max. Design Mechanical Speed: | Max. 100 Bags/min |
Max. Stable Operation Speed: | 70 Bags/min | Middle Packing Machine: | XY-GU-26B |
Speed: | 10-15 Bags/min | Packing Dimension: | 135-190*90-100*60-80 Mm( The Width Will Be Selected By Customer) |

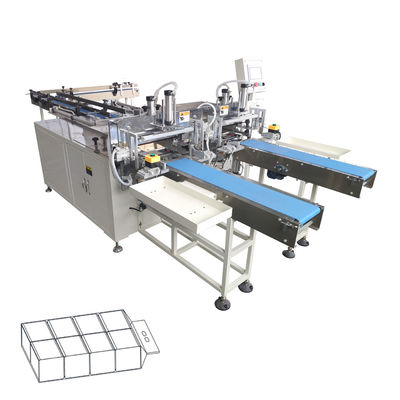

High Light: | Xinyun Tissue Paper Manufacturing Machine,vacuum adsorption Tissue Paper Manufacturing Machine,120cut/Min tissue paper manufacturing unit |
Machine Specification:
Machine Model | XY-GU-20A |
Design Product Capacity | 900 sheets/line/minute |
Jumbo Roll Size | 400-1600mm(W) 1200mm(Ø) |
Jumbo Roll Material Qualify |
Paper Basic Weight: 14~16 gsm x 2ply Paper Material:100% pure paper Jumbo Roll Paper Core: 3 inches |
Interfold Style | V Fold |
Unfold Dimension | 200mm(L)x200mm(W) |
Interfold Dimension | 100mm(L)x200mm(W) |
Controlling System | Frequency drive |
Air compressor | Prepared by buyer |
Power | 11-35 KW (380V 50Hz 3 Phase) |
Function and characteristics
1. Automatic counting points a whole row output
2. Helical blade shear, vacuum adsorption folding
3. Stepless speed regulation unwind and can adapt to rewind high-low tension paper material
4. Adopt PLC computer programming control, pneumatic paper and easy to operate;
5. Frequency conversion control, saves energy.
6. The product width is adjustable, to meet different market requirement.
7. Supporting paper rolling pattern device, pattern obvious, flexible to market demand. (The embossing pattern is chosen by the customers ).
8. It can make “V”type single layer towel and two layers glue lamination .(Optional)
Main technical parameters
Designation | Parameter values |
The length of unfinished products | minimum 500mm(or, mini 5lines) |
The Height of finished product | 30~130mm |
Production Speed | 20~150cuts/min |
Operating speed | 20~120cut/min |
Round blade outer diameter | Φ610mm |
Paper cutting circular knife top speed | 980R/min |
Finished products specification | 70~300mm |
Paper width | 70~110mm |
Cutting Length | 70~300mm |
Left-over Length | 20~65mm |
Power | 11KW |
Power supply | 380V 50Hz |
Air pressure | 0.5~0.8MPa |
Machine Size | 4600*1700*2500mm |
weight | 2300~2600kg |
brake | Parameter setting (auto/manual) |
Stepping sharpening knife | Parameter setting (auto) |
Pneumatic sharpening knife | Parameter setting (auto/manual) |
Blow air | without |
The total pressure switch | Value (not) |
Human-computer interface | DELTA (or selected by customer) |
frequency changer | DELTA |
Servo Drive | DELTA |
Main performance and structure features:
1. Adopt packing method by wrapping, hemming and sealing with compact structure and high product appeal.
2. Adopt the controlling system of step-less frequency conversion, touching screen and PLC, clear display and easy maintenance.
3. Adopt auto-putting conveyor, easy to be connected with automatic production line, saving laboring cost.
4. Stepless-speed regulation with double transducer, automatically adjusting packing film length.
5. High autoimmunization, high specialization, high efficiency and but less trouble.
6. Different sizes can be handled easily thanks to a fast and simple changeover facility.
Model & Main technical parameters:
Model | XY-BT-298 |
Outline Dimension (mm) | 3560*5885*1925 |
Speed (bags / min) | 50-70 |
Packing size (mm)After folding size | 100-230*90-150*40-100 |
Machine's Weight (KG) | 3000 |
Motor Consumption (KW) | 3.66 |
Heating Consumption (KW) | 3.6 |
Power | 380V 50Hz |
Power Consumption (KW) | 7.26 |
Packing film | CPP,PE,OPP/CPP,PT/PE and other film sealed on both sides |
This machine is used for soft-drawing multi-piece middle bag packing, convey automatically by conveyer belt. This machine ssemble paper-feeding, bagging, sealing and cuting in one body. Adopt PLC, liquid crystal text display parameter, easy to set, temperature controll accuracy. Package sealing is good trimming. It is a semi-automatic machine that only need the worker to bagging.
Speed | 10-15 bags/min |
Packing dimension | 135-190*90-100*60-80 mm( the width will be selected by customer) |
Power | 1.2 Kw 380V 50Hz |
Air supply | 0.6 Mpa (prepared by buyer) |
Overall size | 3900*1200*1500 mm |
Weight of machine | 600 Kg |
