1750mm Width Trimming Deflashing Toilet Paper Production Line Unwinding Rack

1750mm Width Trimming Deflashing Toilet Paper Production Line Unwinding Rack
1750mm Width Trimming Deflashing Toilet Paper Production Line Unwinding Rack 1750mm Width Trimming Deflashing Toilet Paper Production Line Unwinding Rack 1750mm Width Trimming Deflashing Toilet Paper Production Line Unwinding Rack 1750mm Width Trimming Deflashing Toilet Paper Production Line Unwinding Rack 1750mm Width Trimming Deflashing Toilet Paper Production Line Unwinding Rack 1750mm Width Trimming Deflashing Toilet Paper Production Line Unwinding Rack

Large Image :  1750mm Width Trimming Deflashing Toilet Paper Production Line Unwinding Rack Get Best Price

Product Details:
Place of Origin: Fujian
Brand Name: Xinyun
Certification: CE
Model Number: XY-TQ-A-C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: FOB XIamen Price25000-500000USD
Packaging Details: Spraying antirust oil on machine surface and cover PE film,then packed by seaworthy Export Packing Wooden pallet, ensure that the goods will safely arrive at the erection or construction site without any damage.
Delivery Time: 60-70days
Payment Terms: T/T
Supply Ability: 200sets/year
Detailed Product Description
Machine Model: XY-TQ-A-C Width Of Jumbo Roll: 1750mm (Other Size Can Be Specified)
Perforation Distance: 4 Anvil Blades(115mm,230mm)(Other Size Can Be Spe Finished Product Diameter: 90~280mm
Finished Product Core Diameter: 38~76mm Production Speed: 200-230m/Min
Unwind Stands: 1 Or 3 Stands (Need To Be Specified) Main Power: 14-45kw 380V 50Hz 3phases
Edge Embossing: Steel To Steel Embossing Rollers
High Light:

1750mm Width Toilet Paper Production Line

,

Trimming Deflashing Toilet Paper Production Line

,

Unwinding Rack thermal paper roll making machine

XY-TQ-A-C Semi Automatic Toilet Tissue Paper Making Production Line

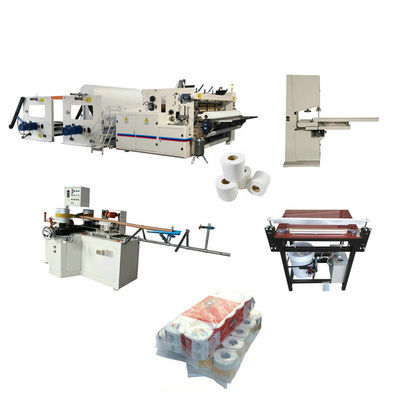

OutlineXY-TQ-A-C Semi-automatic Toilet paper production line is a complete production line for producing small toilet tissue paper, which composed of one set of XY-TQ-B Full-automatic Dot-to-Dot High-speed Rewinding and Perforating Toilet Paper Machine, one set of XY-AI -300 Toilet Paper Cutting Machine, one set of XY-AI-398-B Plastic Bag Sealing and Packing Machine.

Production Process: Unwinding---Embossing---Rewinding---Tail gluing---Edge Trimming---Rewinding---Cutting---Packing
Video Link:
https://youtu.be/r8mkv57RIrs
https://youtu.be/hdCzFQAB4MY

1750mm Width Trimming Deflashing Toilet Paper Production Line Unwinding Rack 0
XY-TQ-B Full automatic toilet paper and kitchen towel machine
Automatic toilet paper rewinding machine is for toilet paper roll processing. Machine have core feeding unit, can do both
with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.

The production process is: Unreeling - Embossing - Perforating- Lamination- Rewinding- Tail-gluing- Edge trimming---Automatic core loading.


Video Link:https://youtu.be/xm3SCLiV9hU1750mm Width Trimming Deflashing Toilet Paper Production Line Unwinding Rack 1
Feature And Functions
1. Automatic core feeding system, automatic log pusher after rewinding, then rewinding the new log again.
2. Automatic edge-trimming, core feeding, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy
to rewind again, so reducing shortcut waste and save the cost.
3. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
4. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.
6. Embossing Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns
7. Adopt jogging switches for wearing the paper, easy and safe to operate.

Product Parameters
Model
XY-TQ-B
Jumbo Roll Width
1750mm (Other size can be specified)
Jumbo Roll Diameter
1200mm(Other size can be specified)
Jumbo Roll Inner Core Diameter
3inches(76.2mm)
Perforation Distance
4 anvil Blades(115mm.,230mm)(Other size can be specified)
Finished Product Diameter
80~280mm
Finished Product Inner Diameter
38~76mm
20Production Speed
200-230m/min
Program Controller
PLC
Jumbo roll paper stand
1 or 3 Stands(Need to be specified)
Pneumatic System
0.5~0.8MPA(Provide by user)
Main Power
18KW
Overall Dimension
10000*3000*2000(L*W*H)
Weight
About 12T(wall board structure)(Other size can be specified)
Jumbo Roll Layers
1~3plys,14~30gsm Toilet paper or kitchen towel
Edge-Line Embossing(can be specified)
Steel to steel (Pneumatic Control)
Embossment (can be specified)
Steel to Rubber, Double Sets
Voltage
380V 50HZ



XY-AI-300 Manual Roll Paper Cutting MachineThis machine is the equipment for roll Toilet Paper and Kitchen Towel, it is the supporting for rewinding and perforated toilet paper machine. The main function is to cutthe rewinded big toilet paper into various kinds of standard small rolls. The machine is compose with stander, saw blade drive, adjustment, tension, saw blade grind, operation table and hand table. It is enjoy compact structure, stable running and convenient operation.
Video Linkhttps://youtu.be/xMaa7WD3d2U1750mm Width Trimming Deflashing Toilet Paper Production Line Unwinding Rack 2



Main technology parameter
Power: 2.2KW (380V 50HZ)
Production speed : 10-30 cuts /min
Overall size(L*W *H) : 1600*600*1800mm
Weight: about 0.2 T


XY-AI-398-B Semi-automatic Plastic Bag Sealing Machine
1.Machine are the pioneer to use mini PLC and screen adjustable temperature range ensure fast efficient and accurate seal and cut operation.

2.Water cooled and dual temperature digital control design allows perfect seal and cut, equipped with heat press label for product production date.
3.Dual digital temperature control enable damage to heat thread, protection tape and air cylinders,
big save for downtime and running cost.
4.Machine operation width 490mm, and different thickness of bags can be seal and cut easily by adjusting the temperature control to achieve rapid steady operation and not disturbed by room temperature difference at all times.

Video Link: https://youtu.be/Nt5A_XtHrEI
1750mm Width Trimming Deflashing Toilet Paper Production Line Unwinding Rack 3
Technical Parameters
Speed
10-20 bags/minute
Width of Flat Seal Thread
6mm
Max sealing width
49 cm
Diameter of Round Thread
¢0.5mm
Materials
Nickel Chrome Thread
Power
1.5KW (220V 50HZ)
Air compressor
0.3-0.5mpa (provided by customer)
Dimension (L×W×H)
900*620*960mm
Weight
80Kg



XY-SD-B Automatic Roll Core Making Machine

Roll core machine is for making the paper core inside the toilet paper roll. It consists of three parts: raw material stand, glue unit, rewinding and cutting unit. It can make different thickness and different diameter paper core by changing the model. This machine easy to operate, running stable, can work with toilet paper rewinding machine.
Video Linkhttps://youtu.be/e1-edRLI_mU
1750mm Width Trimming Deflashing Toilet Paper Production Line Unwinding Rack 4
Function and Features
1. Inverter control to ensure the accuracy of the length of paper tube.
2. Automated online on plastic, paper tube and cut off.
3.Product diameter and length can be customized according to customer needs.
4. Products are widely used in toilet paper. Plastic and textile industry.
5. The machine has reasonable design. operation simple and convenient maintenance.
Technical Parameters
Production speed
15 ~ 20m / minutes
Kraft paper width
50-105 mm
Paper Tube diameter
20mm~100mm (can be customized)
Paper tube layers
2 ~ 30 layers
Paper grams amount
150-400 gsm
Reel Length
800-3000 mm
Defect rate
≤2%
Power
4.5KW 380V 50HZ
Equipment Size(L*W*H)
main machine: 2950*1700*1800mm
glue buckets device: 1250*850*1200mm
Weight
1500Kg



After Sales Service

Why choose machines from Fujian Xinyun Machinery Development Co.,Ltd?
1.Good quality of machine with reasonable price.
2.Good service:Any question from customer will by replied within 24 hours.
For all the machines we sell, we will offer one-year guaranteen for free and all life-long maintenance.
We deliver a USB dish of Operation Video with machine, it will help customers to work the machine easily.
After the machines arrive, the sellers shall send technicians to install the production line(if need).
And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportation and accommodation in buyer's city.
