Product Details:
Payment & Shipping Terms:
|
| Packing Speed: | 50-80 Box/minute | Box Requirement: | 300-450g/㎡ |
|---|---|---|---|
| Size Of Box (L X W X H): | (100-230)mm X (30-120)mm X (20-90)mm | Air Supply: | 0.5-0.8 Mpa |
| Air Consumption: | 180-210L/min | Power: | 5kw 220V 50HZ |
| Machine Noise: | <70 DB | Overall Dimension (L X W X H): | 3400x1400x1700mm |
| Weight: | 2000kg | ||
| High Light: | PLC Control Facial Tissue Packing Machine,80box/min Facial Tissue Packing Machine,PLC Control Tissue Paper Packing Machine |
||

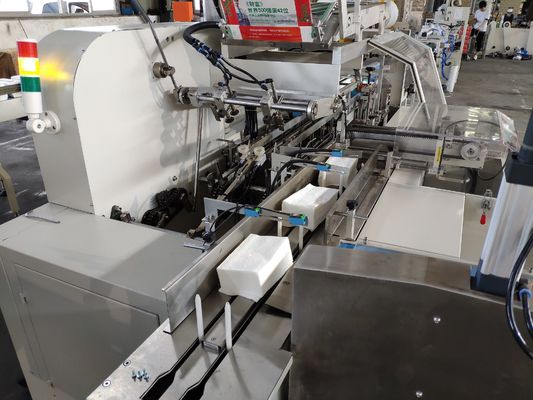

PLC High speed 50-80 box/min facial tissue carton box packing sealing machine
Application:
It’s suitable for automatic boxing of facial tissues, napkins, square tissues, pocket tissues, sanitary, towel, pads etc.
Main performances and features:
1. Adopts automatic material conveying, box opening, feeding, batch No. printing, glue spraying, box sealing, with compact reasonable structure, easy for operation.
2. Adopts servo motor / sept motor, PLC touch screen programmer system, human-machine display, easy for operate, and design with higher mechanization and hommization.
3. Adopts full automatic arrange converying structure, easy connect with automatic line producing, make reduce the labor cost.
4. Adopts automatic photocell eye tracking system for empty box, and save the pack material xost.
5. With widely packing range, easy adjustable for different specification requirements.
6. Change the different size just adjust the machine no need change the mould.
7. With automatic stopping for the miss box feeding, also has the overload protection.
|
Model
|
XY-GU-388
|
|
Outline Dimension (mm)
|
3400*1400*1700
|
|
Speed
|
50-80box/min
|
|
Packing Paper Requirement
|
250-450g/m3
|
|
Machine's Weight (KG)
|
2000
|
|
Packing Size Range
|
Customizable
|
|
Noise
|
≤80dB
|
|
Power
|
380V 50Hz
|
|
Power Consumption (KW)
|
7.5
|
|
Air Consumption
|
180-210L/min
|
|
Air Pressure
|
0.5-0.8 Mpa
|
Our service
Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a DVD of Operation Video with machine,it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need).
And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food ,transportations and accommodation in buyer's city.
Company's information
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Kitchen Towel Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4 ) Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Welcome to contact us to get more details !
We can design the machine according to your request.
