Semi Automatic 200-230m/Min Toilet Paper Production Line

Semi Automatic 200-230m/Min Toilet Paper Production Line
Semi Automatic 200-230m/Min Toilet Paper Production Line Semi Automatic 200-230m/Min Toilet Paper Production Line Semi Automatic 200-230m/Min Toilet Paper Production Line Semi Automatic 200-230m/Min Toilet Paper Production Line

Large Image :  Semi Automatic 200-230m/Min Toilet Paper Production Line Get Best Price

Product Details:
Place of Origin: China
Brand Name: Xinyun
Certification: CE
Model Number: XY-TQ-A-C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: FOB Xiamen Price 800-50000 USD
Packaging Details: Spraying antirust oil on machine surface and cover PE film,then packed by seaworthy Export Packing Wooden pallet, ensure that the goods will safely arrive at the erection or construction site without any damage.
Delivery Time: 60-70days
Payment Terms: T/T, Western Union
Supply Ability: 200sets/year
Detailed Product Description
Width Of Jumbo Roll: 1350-2850 Mm (Need To Be Specified) Finished Product Diameter: 90~280mm
Finished Product Core Diameter: 38~76mm Production Speed: 200-230m/Min
Unwind Stands: 1 -3 Stands (Need To Be Specified) Cutting Speed: 30-60 Cuts/min
Packing Speed: 10-20 Bags/min Main Power: 14-45kw 380V 50Hz 3phases
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Installation,commissioning And Training
High Light:

230m/min toilet paper production line


200m/min toilet paper production line


semiautomatic tissue paper production line

XY-TQ-A-C Semi Automatic 200-230 m/min Milky Toilet Paper Production Line Machine for Start Business

Description of the equipment:
XY-TQ-A-C , Semi automatic small toilet paper machine production line which composed of:
A. 1 set of
XY-TQ-B Full-automatic high-speed rewinding and perforated toilet paper machine,
B. 1 set of XY-AI-300 Manual small toilet paper band saw cutting machine,
C. 1 set of XY-AI-398A Manual Plastic Bag Sealing and Packing Machine

D. 1 set of XY-SD-A Automatic paper core making machine.

Production Process: Unwinding---Embossing---Tail gluing---Edge Trimming---Rewinding---Cutting---Packing
Semi Automatic 200-230m/Min Toilet Paper Production Line 0
Details of each machine:
XY-TQ-B Full-automatic High-speed Rewinding and Perforated Toilet Paper Machine
Description of the equipment:
XY-TQ-1575B this equipment is to perforate and cut the raw paper into various sizes according to the requested. The finished product is neat, in good order and with equality tension. It has the feature of compact structure, easy and stable operation, less electricity consumption and covers a small area of 8.4. The highest production speed is 140-200m/min. This equipment is adjustable to meet the requested finished product. This model is the ideal equipment for paper making factory and paper processing factory.
This equipment can process raw paper of 1.2m (92B type) and 1.75m(75B type) in width. There are two types of this model: one is ordinary type, it used one embossed unit for 2 ply paper, and the other is dot-by-dot type, it used embossed units respectably for each one.
This machine is consist of stand of raw material, paper conveying unit, embossing unit, perforating unit, rolling unit, electricity control and cutting system.

The production process is: Unreeling - Embossing - Perforating-Rewinding- Tail-gluing- Edge trimming---automatic core loading.
Technical data:
Machine Model 1092 1575 2000 2200 2400 2600 2800
Width of jumbo roll (mm) 1200 1750 1950 2150 2350 2550 2750
Finished Products Diameter Φ80~280mm (Tightness can be adjustable)
Finished Products Inner Diameter Φ40-76 mm
Jumbo roll diameter (mm) Φ1200 (Other sizes please point out)
Jumbo Roll Inner Diameter 76.2 mm (other sizes please point out)
Perforation distance (mm) 4 blade,90~120mm; 2 blade,180~240mm;
Production speed 200-230 m/minute
Parameter set Touching-screener Multi-menu Man-machine Interface Operation System
Controller PLC program
Mechanical driving Driven by stepless regulator to guarantee the precise length of final products.
Air pneumatic system 3 Pa (air-compressor), the minimum pressure 5kg/cm2 pa (prepared by buyer)
Power 10kw-30kw (380V 50Hz)
Overall size (L×W×H) 6200X2750X1800 mm
Weight of equipment About 4.2T
Chosen items (Should be ordered separately)
Embossment Single embossment, Double embossment, Edge embossment
Embossment down roller Paper roller, rubber roller
Jumbo roll stander 1-3 plies
Printing unit Single color heliotype printing unit
Other special request for machine is welcome
XY-AI -300 Manual Toilet Paper Cutting Machine

Main technology parameter:
Production speed 30-60 rolls /minute
Power 2.2KW (380V 50Hz)
Overall size 1600*600*1800 mm
Weight 300 Kg

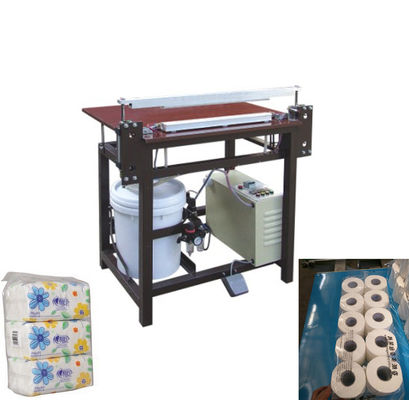

XY-AI-398-B Plastic Bag Sealing Cutting Machine

Machine specification
Speed 10-20 bags/min
Power 1.5Kw 220V 50Hz
Overall size of machine 900*620*960 mm
XY-SD-A paper core making machine
Technology Parameter
Speed 15-20 m/min
Diameter of paper core 35-100 mm
Power 4.5Kw 380V 50Hz
Overall size of machine 3050*850*1650 mm
Weight 1000 Kg
Packing and delivery time

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

Why buy Machine from Fujian Xinyun Machinery Development Co., Ltd?

1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer one-years guarantee for free and all life maintenance.
We will deliver a DVD of Operation Video with machine, it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportations and accommodation in buyer's city.
Company information:
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery anufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
