|Unfold Size Of Napkin:||330*330mm||Fold Size Of Napkin:||165*165mm|
|Width Of Jumbo Roll:||660mm||Printing Unit:||1-3 Colors Printing|
|Embossing Unit:||Full Or Edge Embossing||Parent Roll Diameter:||Max. 1200mm|
|Inner Diameter Of Paper Core:||76mm||Speed:||800-1500 Sheets/min|
|Installed Power:||4.5kw 380V 50Hz||Condition:||New|
|After-sales Service Provided:||Video Technical Support||Automatic Grade:||Automatic|
Eightfold A4 Size Paper Manufacturing Machine,
Embossing A4 Size Paper Manufacturing Machine,
roll slitting machine

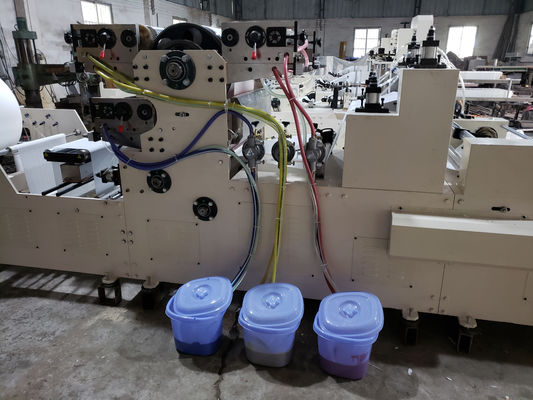

XY-OQ-7000K High Speed Automatic Double
Decks Embossing Napkin Tissue Paper Making Machine
Automatic Double Decks Napkin Paper Making Machine take round type jumbo roll as raw material, process to various kinds of fixed specification napkin paper. The machine starts from raw material feeding, embossing, folding and cutting. Then come out product is two layers, four lines.
The napkin paper product by this machine is hygiene and clear. If you need to produce various kinds specification of napkin paper, you need to order the machine. Also, we can make the machine according to customers' requirements.
|nfold size of napkin||300*300mm||330*330mm||Customized|
|Fold size of napkin||150*150mm||165*165mm|
|Width of jumbo roll||600mm||660mm|
|Printing unit||1-3 colors printing|
|Embossing unit||Full or Edge embossing|
|Parent roll diameter||max. 1200mm|
|Inner diameter of paper core||76.2mm|
|Folding style||1/4 folding, 1/6 folding or 1/8 folding|
|Installed power||4.5KW (380V 50HZ 3Phases)|
|Oversize of machine(L*W*H)||4200*1200*1750mm|
Video Link: https://youtu.be/DcM6_qy93MA
Feature and Functions
1. Color printing device adopts flexible printing, the design can be flexibly according to you need replace, use professional color printing anilox string ink roller.
2. Pattern matching paper rolling device, pattern significantly.
3. Electronic counting dislocation row of output.
4. Folding plate and manipulator are folded and formed by a band sawing cutter.
Related Automatic Packing Machine
Video Link: https://youtu.be/r-PfpmVJ11E
Why choose machines from Fujian Xinyun Machinery Development Co.,Ltd?
1.Good quality of machine with reasonable price.
2.Good service:Any question from customer will by replied within 24 hours.
3.For all the machines we sell, we will offer one-year guaranteen for free and all life-long maintenance.
4. We deliver a USB dish of Operation Video with machine, it will help customers to work the machine easily.
5. After the machines arrive, the sellers shall send technicians to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportation and accommodation in buyer's city.
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4)Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
