Three Phase Automatic 80-100m/Min Facial Tissue Machine

Three Phase Automatic 80-100m/Min Facial Tissue Machine
Three Phase Automatic 80-100m/Min Facial Tissue Machine
video play

Large Image :  Three Phase Automatic 80-100m/Min Facial Tissue Machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: Xinyun
Certification: CE
Model Number: XY-GU-A-BD
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: FOB XIamen Price 69000-110000USD
Packaging Details: Automatic Facial Tissue Paper Soft Bag Packing and Carton Box Packing Machine Production Line 80-100 m/min will be packed by wooden pallet. Spraying antirust oil on machine surface and cover PE film,then packed by seaworthy Export Packing Wooden pallet, e
Delivery Time: 50-60days
Payment Terms: T/T
Supply Ability: 200sets/year
Detailed Product Description
Folding Speed: 80-100 M/min Cutting Speed: 100-150 Cuts/min
Soft Bag Packing Speed: 40-60 Bags/minute Bag Bundle Packing Machine: 10-15 Bags/min
Box Packing Speed: 50-80 Box/minute Main Function: Folding-cutting-packing
Condition: New Voltage: 380 V 50 HZ 3 Phase
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation,Free Spare Parts,commissioning And Training Product Type: Facial Tissue
Color: Milky
High Light:

plc three phase facial tissue machine


80m/min facial tissue machine


100m/min facial tissue machine

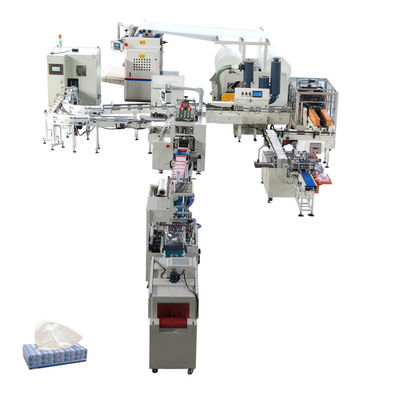

XY-GU-A-BD Automatic Facial Tissue Paper Soft Bag Packing and Carton Box Packing Machine Production Line 80-100 m/min


XY-GU-A-BD High-speed facial tissue carton production line which composed of one set of XY-GU-20A Full-automatic box-drawing facial tissue machine, one set of XY-GU-281 Facial tissue cutting machine ,one set of XY-GU-388 Full-automatic high-speed carton packing machine,one set of XY-BT-298 automatic facial tissue soft packing machine and one set of XY-GU-26B high speed facia tissue bundle packing machine.XY-GU-A-BD High speed facial tissue production line combined embossing, folding, counting, match with high-speed paper cutting machine, conveying, automatic box, automatic seal box. It much save manpower. This machine adopt PLC computer programming technology, frequency control, servo feeding control, match with touch type screen man-machine interface operating system. The whole machine adopts synchronous belt drive. Folding machine can match with automatic tension control system, to suitable various kind of raw material, greatly improve quality and efficiency. This production enjoy with easy operation flow, high production efficiency, perfect product , moreover, it can match with full-automatic heat shrink packaging machine.

Specifications for facial tissue paper production line
High speed
Diameter of raw material
Diameter of raw material inner core
Embossing unit
Steel to steel embossing roll
Driving system
Timing belt
Output lines

Three Phase Automatic 80-100m/Min Facial Tissue Machine 0


XY-GU-20A Automatic Facial Tissue Making Machine

Main functions

This model is designed to produce "link type" box-drawing facial tissue, that's mean, each sheet link together, draw the top tissue , the head of next sheet will come out the box. And this machine can produce either embossed or without embossed for customers' selection.

It has a feature of tight structure, easy operation, stable operation and elaborate designed.
This machine can equip with single color printing or double color printing unit.

The jumbo rolls which have been slit into the desired width are cut by the slitting cylinders, and then interfolded into inter overlapped rectangular facial tissue sheets. This machine have automatic marking functions.
1. Wallboard rack and Machine running stability is extremely good fast
2. Make various products width as requirement .
3. Equipped with embossing unit to keep the plies together
4. The machine will stop when the paper broken. It avoid waste caused by no paper or paper broken.

Three Phase Automatic 80-100m/Min Facial Tissue Machine 1


Video Link:


Model XY-GU-20A
Speed 80-100 m/min
Folding size of finished products 100*200±2mm
Unfold size of finished products 200*200±2mm
Diameter of raw material 1200mm
Diameter of raw material inner core 76.2mm
Embossing unit Steel to steel
Slitting unit Pneumatic slitting
Pneumatic system 3 HP air compressor ,mini pressure 5kg/cm2PA
Driving system Timing belt

XY-GU-281 Automatic Single Channel Paper Cutting MachineCyclotron paper cutter is used to automatically cut off a row folded and round roll paper towel products, such as the removable tissue or toilet roll paper. The whole machine adopts servo drive technology and frequency control of motor speed and enhance the stability of paper cutting, and improves the cutting precision of tissue and to cut off the end face flat . Cutting length within the scope of the machine allows arbitrary adjustable. Fixed automatic knife grinding wheel Angle, ensure the quality of the sharpening knife. Knife grinding place often blow compressed air for cooling, and can match the special cooling fluid.Three Phase Automatic 80-100m/Min Facial Tissue Machine 2

Technical Parameters

Cutting Length
Setting freely
Cutting height
Cutting width
80-120 mm
Power supply
11 KW 380V 50Hz
Air pressure
Machine Size


XY-BT-298 Full Automatic Three-dimensional Facial Tissue Packing Machine

Three Phase Automatic 80-100m/Min Facial Tissue Machine 3
Function and Features
1.Adopt packing method by wrapping, hemming and sealing with compact structure and high product appeal.
2.Adopt the controlling system of step-less frequency conversion, touching screen and PLC, clear display and easy maintenance.
3.Adopt auto-putting conveyor, easy to be connected with automatic production line, saving laboring cost.
4.Stepless-speed regulation with double transducer, automatically adjusting packing film length.
5.High autoimmunization, high specialization, high efficiency and but less trouble.
6.Different sizes can be handled easily thanks to a fast and simple changeover facility.
Technical Parameters
Model XY-298A XY-298B XY-298C
Outline Dimension (mm) 3560*5885*1925 3560*5885*1925 3560*5885*2050
Speed (bags / min) 35-50 45-75 35-50

Packing size (mm)

After folding size

100-230*100-150*40-100 100-230*100-150*40-100 100-230*100-200*40-100
Machine's Weight (KG) 3000 3800 3800
Motor Consumption (KW) 3.66 3.66 3.66
Heating Consumption (KW) 3.6 3.6 3.6
Power 380V 50Hz 380V 50Hz 380V 50Hz
Power Consumption (KW) 7.26 7.26 7.26
Packing film CPP,PE,OPP/CPP,PT/PE and other film sealed on both sides

XY-GU-388 Automatic facial tissue carton box packing machine

Feature And Functions

1. Rejection automatically if no products, nonstandard height or lack of leaflet.
2. Stop automatically if incorrect position of products into carton and if no cartons or out of leaflets continuous.
3. Protecting automatically for overloading.
4. Automatically displaying device for speed and finished products counting.


Technical Parameters

Packing speed 50-80 boxes/min
Packing material Box requirement 300-450g/square meter
Size of box(L*W*H) (100-230)* (30-120)* (20-90)mm
Air compressor Air supply 0.5-0.8mpa(provide by clients)
Air consumption 180-210L/min
Total Power 7.5KW (380V 50HZ three phase)
Overall dimension(L*W*H) 3400*1400*1700mm
Weight 2000KG

Three Phase Automatic 80-100m/Min Facial Tissue Machine 4

XY-GU-26B High speed facial tissue bundle packing machine

Three Phase Automatic 80-100m/Min Facial Tissue Machine 5

XY-TN-269 Full Automatic Box Facial Tissue Heat Shrink Packing Machine

Three Phase Automatic 80-100m/Min Facial Tissue Machine 6

After Sales Service

Why choose machines from Fujian Xinyun Machinery Development Co.,Ltd?
1.Good quality of machine with reasonable price.
2.Good service:Any question from customer will by replied within 24 hours.
For all the machines we sell, we will offer one-year guaranteen for free and all life-long maintenance.
We deliver a USB dish of Operation Video with machine, it will help customers to work the machine easily.
After the machines arrive, the sellers shall send technicians to install the production line(if need).
And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportation and accommodation in buyer's city.


Company Profile

Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4)Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.

Welcome to contact us to get more details !

We can design the machine according to your request.
