200m/Min INVT Toilet Tissue Paper Making Machine Slitting Rewinding

200m/Min INVT Toilet Tissue Paper Making Machine Slitting Rewinding
200m/Min INVT Toilet Tissue Paper Making Machine Slitting Rewinding 200m/Min INVT Toilet Tissue Paper Making Machine Slitting Rewinding 200m/Min INVT Toilet Tissue Paper Making Machine Slitting Rewinding 200m/Min INVT Toilet Tissue Paper Making Machine Slitting Rewinding 200m/Min INVT Toilet Tissue Paper Making Machine Slitting Rewinding

Large Image :  200m/Min INVT Toilet Tissue Paper Making Machine Slitting Rewinding Get Best Price

Product Details:
Place of Origin: Fujian
Brand Name: Xinyun
Certification: CE
Model Number: XY-TQ-B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: FOB XIamen Price20000-100000USD
Packaging Details: Spraying antirust oil on machine surface and cover PE film,then packed by seaworthy Export Packing Wooden pallet, ensure that the goods will safely arrive at the erection or construction site without any damage.
Delivery Time: 50-60days
Payment Terms: T/T
Supply Ability: 200sets/year
Detailed Product Description
Voltage: 380 V 50 Hz Three Phase Weight: Depend On The Machine
Dimension(l*w*h): Depend On The Machine Warranty: One Year
Power(w): Depend On The Machine Speed: 180-200m/min
Automatic Grade: Automatic Capacity: 1-2 Tons Per Day
High Light:

200m/min Toilet Tissue Paper Making Machine

,

INVT Toilet Tissue Paper Making Machine

,

thermal paper slitting rewinding machine

XY-TQ-B Automatic Toilet Paper Kitchen Towel Paper Roll Making Machine

Outline

Automatic toilet paper rewinding machine is for toilet paper roll processing. Machine have core feeding unit, can do both
with and without core(need to point out). Raw material is processed from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue and become a log. Then it can work with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, and people can operate it through touch screen, the whole process is automatic, easy to operate, lower man cost.

Video Linkhttps://youtu.be/xm3SCLiV9hU





Feature and Function

1. Automatic core feeding system, automatic log pusher after rewinding, then rewinding the new log again.
2. Automatic edge-trimming, core feeding, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy
to rewind again, so reducing shortcut waste and save the cost.
3. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
4. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.

200m/Min INVT Toilet Tissue Paper Making Machine Slitting Rewinding 0

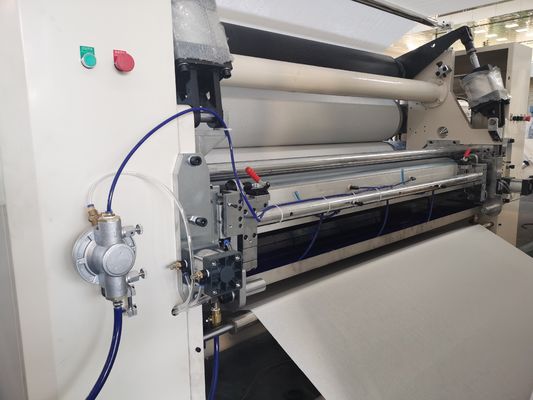

Detailed Picture

200m/Min INVT Toilet Tissue Paper Making Machine Slitting Rewinding 1



Product Parameters

Jumbo roll max width 1800mm (Other size can be specified)
Jumbo roll diameter max.1200mm
Jumbo roll inner core diameter 3 inches(76.2mm)
Finish product diameter 90-280mm
Finish product Inner core diameter 38-76mm
Perforation distance 120-150mm
Production speed 180-230m/min
PLC INVT
Pneumatic system

3HP Air Compressor

Minimum Pressure: 5kg/cm 2Pa

Rewinding Unit With core or coreless(need to point out)



Finished Products

200m/Min INVT Toilet Tissue Paper Making Machine Slitting Rewinding 2





After Sales Service
1.Good quality of machine with reasonable price.
2.Good service:Any question from customer will by replied within 24 hours.
3.For all the machines we sell, we will offer one-year guaranteen for free and all life-long maintenance.
4. We deliver a USB dish of Operation Video with machine, it will help customers to work the machine easily.



Company Profile

Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4)Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
