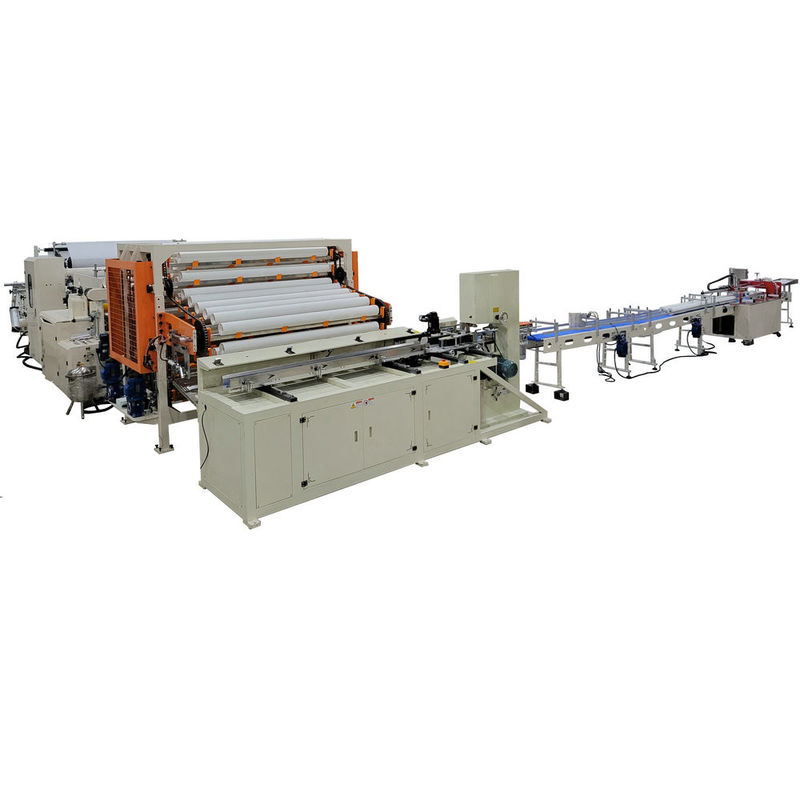

Fully Automatic Toilet Paper Band Saw Making Machine Production Line
XY-TQ-B-400 Fully Automatic Good Quality Toilet Paper Band Saw Making Machine Production Line
This production line includes an automatic toilet paper rewinding machine, a single-channel log saw cutting machine, and a semi-automatic multiple rolls packing machine. It transforms jumbo rolls into finished products. The line operates smoothly, saving labor costs and reducing workload, making it the ideal choice for producing hygienic paper products.
XY-TQ-B Automatic Wrapper-type High Speed Toilet Paper
Outline:
Automatic Wrapper Type High Speed Toilet Paper Rewinding Machine processes toilet paper rolls. It features a core feeding unit and can handle fully or edge embossed materials. The machine perforates, cuts, and applies tail glue to create logs, which can then be cut and packed. Controlled by PLC and operated via touchscreen, it's automatic and easy to use, reducing labor costs. We also offer customizations based on client requirements.
Functions and Features --- Wall Type Automatic Rewinding Machine:
1.This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high speed, and noiseless.
2. Perforation distance is adjustable to meet different distance needs.
3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
5. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
7. Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted independently.
8. Adopt jogging switches for wearing the paper, easy and safe to operate.
Main Technical Parameter:
| Model |
XY-TQ-B Wall Type Automatic Toilet Paper Rewinding Machine |
| Jumbo Roll Max Width |
2800mm (Other size can be specified) |
| Jumbo Roll Diameter |
Φ1100mm(Other size can be specified) |
| Jumbo Roll Inner Diameter |
3inches(76.2mm) (Other size can be specified) |
| Perforation Distance |
4 anvil Blades(115mm)(Other size can be specified) |
| Finished Product Diameter |
Φ80~φ280mm |
| Finished Product Core Diameter |
φ38~φ76mm |
| Production Speed |
0~230m/min |
| Program Controller |
PLC(DELTA OR INVT need to confirm) |
| Unwind Stands |
1 or 3 Stands(Need to be specified) |
| Pneumatic System |
3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user) |
| Main Power |
14KW 380V 50HZ |
| Dimension |
7000*4000*1900(L*W*H) |
| Weight |
About 7T |
| Edge-Line Embossing |
Steel to steel (Pneumatic Control) |
| Full Embossment |
Steel to rubber. |
XY-AI-400 Automatic Toilet Paper Band Saw Cutting Machine
Technical Performance Characteristic:
The equipment is operated utilizing PLC program control and a large-screen true-color human-computer interface. The precise servo control regulates the feed length, while the electromechanical integration control and other internationally advanced technologies automatically detect each key action. It features a robust fault information prompt system, enabling the entire production line to achieve optimal working conditions.
This band saw is good for new paper factory to cut toilet paper roll and kitchen towel.
Feature and Function:
1.When the paper cannot be cut further, the equipment will automatically halt and issue an alarm to alert the operator.
2.Employing a high-precision servo system in the feed motor servo system ensures the superior quality of the finished product.
3.The equipment automatically calculates the quantity of finished products being cut based on the raw material and the specified length of the finished product.
4.In the event of incorrect data input, the equipment will cease operation and prompt the user to make adjustments on the interface.
5.The waste paper header and paper end are automatically sorted for efficient management.
6.The equipment features an automatic knife sharpening system, which can be adjusted based on the paper being cut to enhance cutting longevity.
7.The sharpening knife system utilizes a sharp steel wheel, significantly increasing the efficiency of the knife sharpening process.
Main Technical Parameters:
| Cutting speed |
80～100cuts/minute |
| Cutting blade |
band saw blade(Size 3750*60*0.6) |
| Toilet log length |
≦2850mm(it can be made according to customer request) |
| Finished toilet roll length |
≦300mm |
| Finished toilet roll diameter |
70-130mm |
| Cutting tolerance |
±1.5mm |
| Power supply |
5kw 380V 50H 3 phase 4line |
| Overall size |
2800x1500x2100mm |
| Machine weight |
1100KG |
XY-AI-398A Semi Auto Multiple Rolls Packing Machine
Main Technical Parameters:
| Voltage |
220V 50HZ |
| Main Power |
0.74KW |
| Sealing Transformer Power |
0.45KW |
| Total Power |
1.19KW |
| Air Pressure |
0.4-0.5MPA |
