Home > products > Toilet Roll Packing Machine > High Speed Toilet Tissue Paper Packaging Machine Multi Rolls Packing Machine

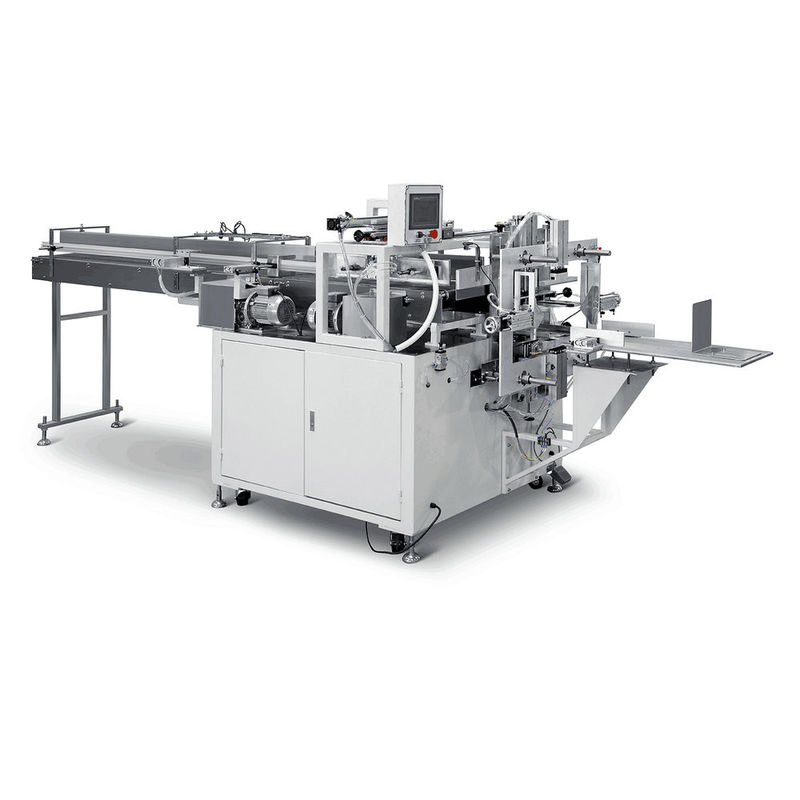

High Speed Toilet Tissue Paper Packaging Machine Multi Rolls Packing Machine

Product Details

Place of Origin: China

Brand Name: XINYUN

Certification: CE

Model Number: XY-AI-653D

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 15500-17800 set

Packaging Details: In wooden pallet.Most of the electrical and electronic components are equipped as per export standard.

Delivery Time: After receiving the deposit 30-70 work days

Payment Terms: T/T

Get Best Price
Highlight:

tissue paper packaging machine multi rolls

,

multi rolls tissue packaging machine

,

220v tissue packaging machine

Specification Of One Roll:
Diameter:90mm Height:90mm
Working Speed(bag/min):
4-6bags/min
Packaging Method:
Prefabricated Bag
Power Supply:
220V 50HZ
Machine Dimensions:
5000*1800*1500
Packaging Unit:
Manual
Weight(kg):
750
Specification Of One Roll:
Diameter:90mm Height:90mm
Working Speed(bag/min):
4-6bags/min
Packaging Method:
Prefabricated Bag
Power Supply:
220V 50HZ
Machine Dimensions:
5000*1800*1500
Packaging Unit:
Manual
Weight(kg):
750
High Speed Toilet Tissue Paper Packaging Machine Multi Rolls Packing Machine

XY-AI-D653 High Speed Toilet Tissue Paper Multi Rolls Packing Machine

High Speed Toilet Tissue Paper Packaging Machine Multi Rolls Packing Machine 0

Main Features:

1. This equipment can connect with auto cutting machine to be a production line. Only need one person bagging . Conveyor belt automatic conveying, automatic stacking, paper feeding, bagging, sealing and cutting.

2. Adopt PLC computer programming control, double frequency control, touch-screen display parameters, easy to set, temperature control more accurate, more effective protection of hot wire and high temperature resistant adhesive tape.

3. The sealing of package is beautiful and tidy, and is connected with automatic machine to realize the mechanized conveying paper. It only need worker bagging. The speed of whole machine is faster, save labor, reduce production cost, and improve production benefits.

4. Packing speed: 4-6 bag/min

The machine has the advantages of reasonable structure, stable performance, strong material and durability; The main parts of control parts are imported high-quality components, and the rest are the national standard high-quality components.



Main Technical Parameters:

Model D653
Quantity (set) 1
Weight(kg) 750
Dimension for main machine(L*W*H)mm 5000*1800*1500
Name Toilet paper roll two layer middle packing machine
Main design parameter
Working speed(bag/min) 4-6bags/min
Arrangement mode

2 row * (4-6) ranks *2 layer



Specification of one roll

Diameter:90mm

Height:90mm

Specification for medium bag packaging(mm) L 450
  W 360
  H 90
Packaging method Prefabricated bag
Feed control PLC control automatic feeding
Bagging method Manual
Packing material PE,0PP
Sealing quality no disengage, no melting failure
Film thickness(mm) 8mm above
Total power 2.2KW
Supply voltage 220V 50HZ
Air pressure 0.5MPA



Detail Pictures:

High Speed Toilet Tissue Paper Packaging Machine Multi Rolls Packing Machine 1High Speed Toilet Tissue Paper Packaging Machine Multi Rolls Packing Machine 2



FAQ:
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 60-90 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
