PLC Automatic Pocket Paper Tissue Machine Production Line 8-12bags/min

Name: PLC Automatic Pocket Paper Tissue Machine Production Line 8-12bags/min
Brand: Fujian Xinyun Machinery Development Co., Ltd.
SKU: XY-NGU-21C
Price: 53000 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: XINYUN

Certification: CE

Model Number: XY-NGU-21C

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 53000 Set

Packaging Details: Wooden pallets or wooden boxes

Delivery Time: Within 70 days after receipt of the deposit.

Payment Terms: T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                pocket paper tissue machine, plc paper tissue machine, plc tissue paper making machine


Counting Unit:	Electronic Counting	Production Speed:	8-12bags/min
Control System:	PLC	Safety Device:	Emergency Stop Button, Safety Guard
Operator Interface:	Touch Screen	Packing Material:	Double-sided Heat Sealing Membrane Such As CPP, PE, CPP

Counting Unit:	Electronic Counting
Production Speed:	8-12bags/min
Control System:	PLC
Safety Device:	Emergency Stop Button, Safety Guard
Operator Interface:	Touch Screen
Packing Material:	Double-sided Heat Sealing Membrane Such As CPP, PE, CPP

PLC Automatic Pocket Paper Tissue Machine Production Line 8-12bags/min

XY-NGU-21C Best Price Automatic Pocket Paper Tissue Machine Production Line

PLC Automatic Pocket Paper Tissue Machine Production Line 8-12bags/min 0

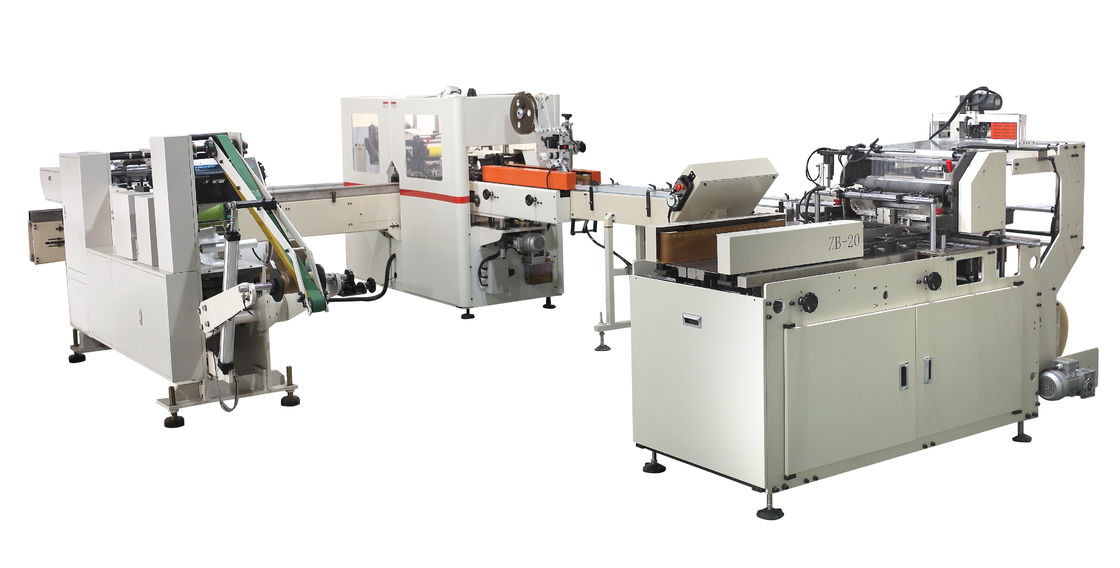

Machines Including:

Pocket tissue(handkerchief tissue) folding machine with separator

Automatic pocket tissue (handkerchief tissue) packing machine

Automatic pocket tissue(handkerchief tissue) wrapping machine

Pocket tissue (handkerchief tissue) folding machine with separator

PLC Automatic Pocket Paper Tissue Machine Production Line 8-12bags/min 1

Main Technical Parameters:

Speed of the separator	60 bags/min
Speed control	Frequency converter
Raw material	13-25gm 1-3plies
Outer Dia. of jumbo roll	max. 1500mm
Embossing unit	single embossing (steel to rubber, stamp designed by user)
Vacuum pump	5.5Kw, 380V, 50Hz
Production speed	600PCS/min (controlled by frequency converter)
Finished products unfold size	210*210mm
Finished products folded size	10252mm and 7252mm
Power	0.75kw, 380v, 50Hz
Overall size	3851×650×1380mm(L×W×H)
Over weight	about 1T

Automatic pocket tissue (handkerchief tissue) packing machine

Main Technical Parameters:

Size of finished product: standard size	L=102mm, W=52mm, H=22-26mm Mini size:L=72mm, W=52mm, H=22-26mm
Packing size(LWH)	(70-110)(50-55)(20-28)mm
Machine speed	105bags/min
Stable speed	90bags/min
Heating power	3.5Kw, 220V, 50Hz
Drive power	1.5Kw, 380V, 50Hz
Air pressure	0.6Mpa (user supplied)
Step Motor	0.38Kw, 380V, 50Hz
Machine size	284026501720mm (LWH)
Machine weight	1.5T

Automatic pocket tissue (handkerchief tissue) wrapping machine (single channel)

Main Technical Parameters:

Size of finished product	52(standard size:26010244/52mm,mini size:26072*44/52mm)
Machine speed	8-12bags/min
Heating power	1.78Kw, 380V, 50Hz
Drive power	1.5Kw, 380V, 50Hz
Air pressure	0.6Mpa (user supplied)
Step Motor	0.38Kw, 380V, 50Hz
Machine weight	1.4T
Machine size	250023501550mm (LWH)

FAQ:
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 60-90 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
