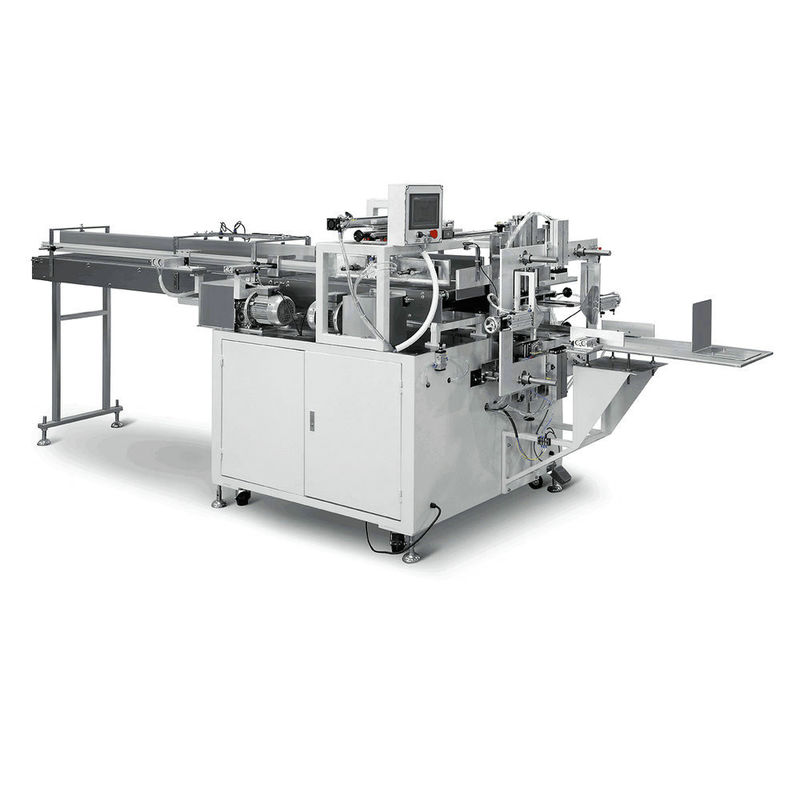

Best Price 24 Rolls Bathroom Toilet Tissue Bundling Packing Machine 6bags/min

Product Details

Place of Origin: China

Brand Name: XINYUN

Certification: CE

Model Number: XY-AI-653D

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 15500-17800 set

Packaging Details: In wooden pallet.Most of the electrical and electronic components are equipped as per export standard.

Delivery Time: After receiving the deposit 30-70 work days

Payment Terms: T/T

Get Best Price
Highlight:

24 Rolls tissue paper packaging machine

,

24 Rolls tissue packaging machine

,

Toilet tissue paper packing machine

Condition:
New
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Video Technical Support
Warranty:
12 Months
Product Type:
Toilet Tissue
Processing Type:
Packing Machine
Application:
Factory
Automatic Grade:
Semi-automatic
Condition:
New
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Video Technical Support
Warranty:
12 Months
Product Type:
Toilet Tissue
Processing Type:
Packing Machine
Application:
Factory
Automatic Grade:
Semi-automatic
Best Price 24 Rolls Bathroom Toilet Tissue Bundling Packing Machine 6bags/min

XY-AI-D653 Best Price 24 Rolls Bathroom Toilet Tissue Bundling Packing Machine

Best Price 24 Rolls Bathroom Toilet Tissue Bundling Packing Machine 6bags/min 0

Main Features:

1.This state-of-the-art equipment seamlessly integrates with an auto cutting machine, forming a high-efficiency production line. With just one operator needed for bagging, the system takes care of the rest: automatic conveying on the conveyor belt, stacking, paper feeding, bagging, sealing, and cutting.
2. The equipment employs advanced PLC computer programming control, featuring double frequency control and a user-friendly touch-screen display for parameter adjustment. Settings are effortless, and temperature control is precise, ensuring optimal protection of the hot wire and high-temperature resistant adhesive tape.
3. The package sealing is aesthetically pleasing and neat, further facilitating the connection with automatic machines to achieve机械化 conveying paper. Minimal human intervention is required, as workers only need to handle the bagging process. The machine's enhanced speed results in faster operations, saving labor costs, reducing production expenses, and boosting production profitability.
4. With a packing speed of 4-6 bags per minute, this machine stands out for its rational structure, stable performance, robust materials, and durability. Premium imported components are used for key control parts, while the remaining components adhere to national high-quality standards, ensuring reliability and longevity.



Main Technical Parameters:

Model D653
Quantity (set) 1
Weight(kg) 750
Dimension for main machine(L*W*H)mm 5000*1800*1500
Name Toilet paper roll two layer middle packing machine
Main design parameter
Working speed(bag/min) 4-6bags/min
Arrangement mode

2 row * (4-6) ranks *2 layer

Specification of one roll

Diameter:90mm Height:90mm

Specification for medium bag packaging(mm) L 450
  W 360
  H 90
Packaging method Prefabricated bag
Feed control PLC control automatic feeding
Bagging method Manual
Packing material PE,0PP
Sealing quality no disengage, no melting failure
Film thickness(mm) 8mm above
Total power 2.2KW
Supply voltage 220V 50HZ
Air pressure 0.5MPA



Detail Pictures:

Best Price 24 Rolls Bathroom Toilet Tissue Bundling Packing Machine 6bags/min 1Best Price 24 Rolls Bathroom Toilet Tissue Bundling Packing Machine 6bags/min 2
