200-230m/Min Toilet Paper Kitchen Towel Manufacturing Machine

XY-TQ-B Good price high-quality toilet paper kitchen towel manufacturing machine

Outline

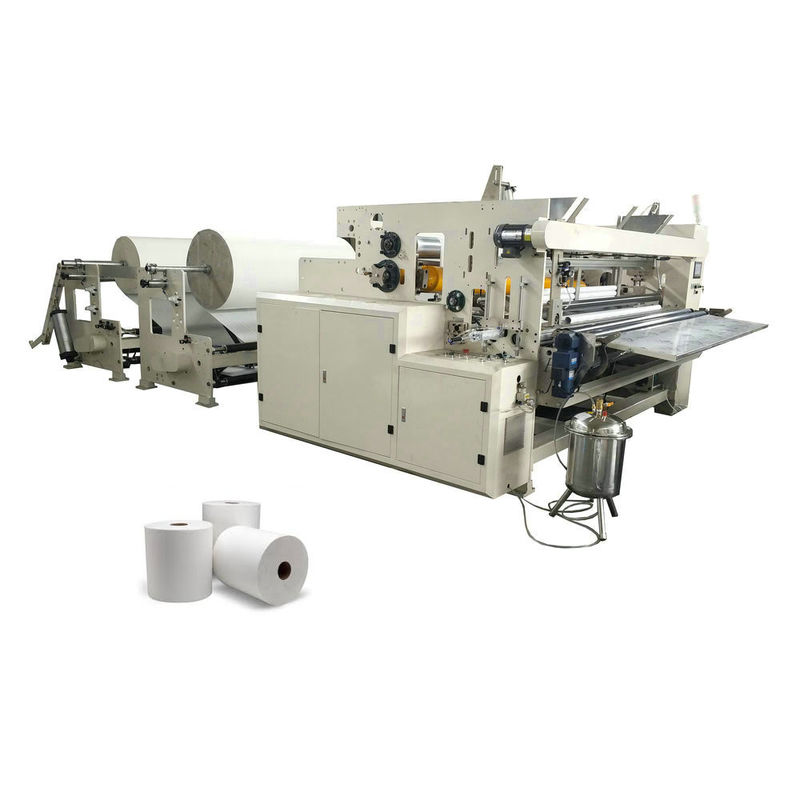

XY-TQ-B Automatic toilet paper rewinding machine is designed for processing toilet paper rolls. The machine features a core feeding unit, capable of processing both with and without a paper roll core.

The raw material is fed from a jumbo roll and undergoes color printing, perforation, end cutting, and tail glue spraying to form a log roll. This log roll can then be processed with a cutting machine and packing machine to produce finished small toilet paper rolls.

The machine is PLC-controlled and operated through a PLC touch screen. The entire process is fully automated, making it easy to operate and reducing labor costs.

The production process is: Unreeling — color printing---Perforating— Rewinding— Tail gluing— Edge trimming---Automatic core loading.

Feature and Function

1. Automatic core feeding system, automatic log pusher after rewinding, then rewinding the new log again.
2. Automatic edge-trimming, core feeding, glue spraying and sealing synchronously in one time.

3.Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
4. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.

5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.

6. Embossing Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns

7. Adopt jogging switches for wearing the paper, easy and safe to operate.

Product Parameters

Finished Products
