Fully Automatic V Fold Facial Tissue Paper Boxed Packing Machine

Name: Fully Automatic V Fold Facial Tissue Paper Boxed Packing Machine
Brand: Fujian Xinyun Machinery Development Co., Ltd.
SKU: XY-GU-388
Price: 31 USD
Availability: InStock

Product Details

Place of Origin: Quanzhou

Brand Name: Xinyun

Certification: CE

Model Number: XY-GU-388

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 31,000 set

Packaging Details: In standard export packing wooden pallet

Delivery Time: 60 days

Payment Terms: T/T, L/C

Supply Ability: 165 sets per year

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                Tissue Paper Boxed Packing Machine, V Fold tissue paper packing machine, Boxed tissue paper packing machine


Packing Speed:	50-80 Box/minute	Box Requirement:	300-450g/㎡
Size Of Box (L X W X H):	(100-230)mm X (30-120)mm X (40-90)mm	Power:	5kw 380V 50HZ
Overall Dimension (L X W X H):	3400x1400x1700mm	Weight:	2000kg

Packing Speed:	50-80 Box/minute
Box Requirement:	300-450g/㎡
Size Of Box (L X W X H):	(100-230)mm X (30-120)mm X (40-90)mm
Power:	5kw 380V 50HZ
Overall Dimension (L X W X H):	3400x1400x1700mm
Weight:	2000kg

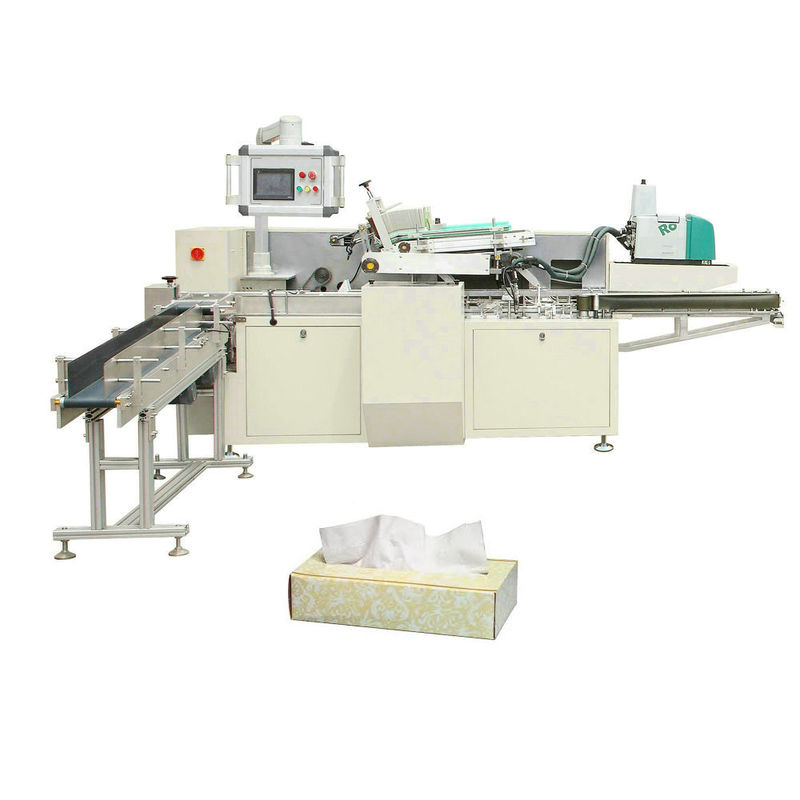

Fully Automatic V Fold Facial Tissue Paper Boxed Packing Machine

XY-GU-388 Fully Automatic V Fold Facial Tissue Paper Boxed Packing Machine

Outline

It is suitable for packing facial tissue paper and other related similar content compact with automatic leaflet folding, box opening and loading, then sealing the box.

It adopts PLC control, photoelectricity supervision to coordinate with every parts. Automatic stop and trouble display when machine running exceptional in order to solving troubles in time. This machine can be used separately, and also can connect with facial tissue log saw cutting machine on line.

Fully Automatic V Fold Facial Tissue Paper Boxed Packing Machine 0

Feature & Functions

1. Rejection automatically if no products, nonstandard height or lack of leaflet.

2. Stop automatically if incorrect position of products into carton.

3. Stop automatically if no cartons or out of leaflets continuous.

4. Easy to change to different products.

5. Protecting automatically for overloading.

6. Automatically displaying device for speed and finished products counting.

Parameter

			Specification
Packing speed			50-80 box/minute
Packing material	Box requirement		300-450g/㎡
	Size of box (L x W x H)		(100-230)mm X (30-120)mm X (40-90)mm
Air compressor		Air supply	0.5-0.8mpa
		Air consumption	180-210L/min
Power			5kw 380V 50HZ
Machine noise			<70 dB
Overall dimension (L x W x H)			3400x1400x1700mm
Weight			2000kg

Detailed Photo

Fully Automatic V Fold Facial Tissue Paper Boxed Packing Machine 1
