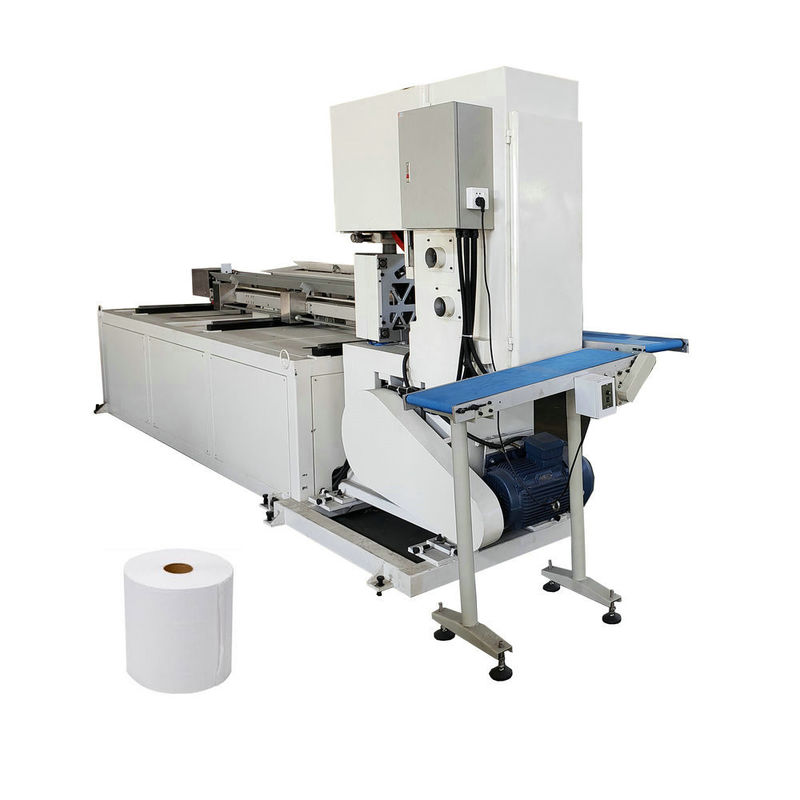

Maxi Roll Toilet Paper Slitting Machine For Manufacturing Plants 15-30cuts/minute

Name: Maxi Roll Toilet Paper Slitting Machine For Manufacturing Plants 15-30cuts/minute
Brand: Fujian Xinyun Machinery Development Co., Ltd.
SKU: XY-AI-500
Price: 22000 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: XINYUN

Certification: CE

Model Number: XY-AI-500

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 22000 Set

Packaging Details: Wooden pallets or wooden boxes

Delivery Time: Within 70 days after receipt of the deposit.

Payment Terms: T/T

Supply Ability: 500 sets per year

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                maxi roll toilet paper slitting machine, 30cuts/minute toilet paper cutting machine, 30cuts/minute toilet paper slitting machine


After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Video Technical Support	Voltage:	380V
Product Name:	Toilet Paper Roll Cutting Machine	Cutting Speed:	15-30cuts/minute
Log Length:	≦2200mm Or ≦2850mm	Cutting Length:	≦300mm
Cutting Diameter:	150-300mm(Adjustable)	Power Supply:	15KW 3 Phase 4line 380V 50HZ
Machine Weight:	2700KG	Overall Size Of Machine:	460023502200mm（2.2m Jumbo Roll) 530023502200mm (2.2-2.85m Jumbo Roll)

After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Video Technical Support
Voltage:	380V
Product Name:	Toilet Paper Roll Cutting Machine
Cutting Speed:	15-30cuts/minute
Log Length:	≦2200mm Or ≦2850mm
Cutting Length:	≦300mm
Cutting Diameter:	150-300mm(Adjustable)
Power Supply:	15KW 3 Phase 4line 380V 50HZ
Machine Weight:	2700KG
Overall Size Of Machine:	460023502200mm（2.2m Jumbo Roll) 530023502200mm (2.2-2.85m Jumbo Roll)

Maxi Roll Toilet Paper Slitting Machine For Manufacturing Plants 15-30cuts/minute

XY-AI-500 Good Quality Maxi Toilet Paper Roll Slitting Machine for manufacturing plants

Description of the equipment:

This state-of-the-art equipment, developed through the latest R&D, features PLC control and a large color touchscreen. It utilizes precise servo control for feed length and advanced electromechanical integration, enabling automatic detection of key actions and fault alerts to ensure optimal production line performance.

Maxi Roll Toilet Paper Slitting Machine For Manufacturing Plants 15-30cuts/minute 0

Features:

The main motor is independently driven by an inverter.
The paper roll cutting diameter is adjustable from 100 to 280mm.
The automatic sharpening system adjusts the grinding wheel feed based on blade wear.
The grinding system includes a dedicated dust removal device.
The band saw features a hydraulic tension system.
The system automatically stops and alarms in case of knife breakage.
The high-precision servo system ensures consistent product quality.
The finished product count is automatically calculated based on raw materials and length.
The device stops and alerts when input data is incorrect.
Band saw cutting reduces operational costs.
The recommended finished paper core thickness is under 3mm.

Main technical parameters:

Cutting speed	15-30cuts/minute
Cutting channel	single channel
Cutting blade	band saw blade(18,000--20,000 rolls/blade)
Cutting blade size	51801001.05
Log length	≦2200mm or ≦2850mm
Tolerance	±2mm
Cutting length	≦300mm
Cutting diameter	150-300mm(Adjustable)
Thickness of paper core	≦3 mm
Power supply	15KW 3 phase 4line 380V 50HZ
Machine weight	2700KG
Overall size of machine	460023502200mm(2.2m jumbo roll) 530023502200mm (2.2-2.85m jumbo roll)

Detail pictures:

Maxi Roll Toilet Paper Slitting Machine For Manufacturing Plants 15-30cuts/minute 1
