Dot To Dot Embossing Glue Lamination N Fold Hand Towel Paper Making Machine Production Line

Name: Dot To Dot Embossing Glue Lamination N Fold Hand Towel Paper Making Machine Production Line
Brand: Fujian Xinyun Machinery Development Co., Ltd.
SKU: XY-BT-288
Price: 36000 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: XINYUN

Certification: CE

Model Number: XY-BT-288

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: 36000 usd per set

Packaging Details: Standard export wooden pallet

Delivery Time: 60 days

Payment Terms: T/T

Supply Ability: 500 sets per year

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                N Fold Hand Towel Paper Machine, 380V 50HZ Hand Towel Paper Machine


Speed:	100m/min	Color:	White
Size:	2000mm10001800mm	Weight:	3000 Kg
Warranty:	1 Year	Power:	380V 50HZ 3Phase
Finished Product:	Glue Lamination N Fold Hand Towel	Condition:	New
Jumbo Roll Width:	1200mm	Jumbo Roll Diameter:	1200mm

Speed:	100m/min
Color:	White
Size:	2000mm10001800mm
Weight:	3000 Kg
Warranty:	1 Year
Power:	380V 50HZ 3Phase
Finished Product:	Glue Lamination N Fold Hand Towel
Condition:	New
Jumbo Roll Width:	1200mm
Jumbo Roll Diameter:	1200mm

Dot To Dot Embossing Glue Lamination N Fold Hand Towel Paper Making Machine Production Line

Dot to dot embossing glue lamination N fold hand towel paper making machine production line

This production line including 3 machines:

1. XY-BT-288N Automatic glue lamination N fold hand towel paper folding machine

2. XY-AI-15 Semi automatic hand towel bagging machine

3.XY-AI-300 Semi automatic hand towel cutting machine

Dot To Dot Embossing Glue Lamination N Fold Hand Towel Paper Making Machine Production Line 0

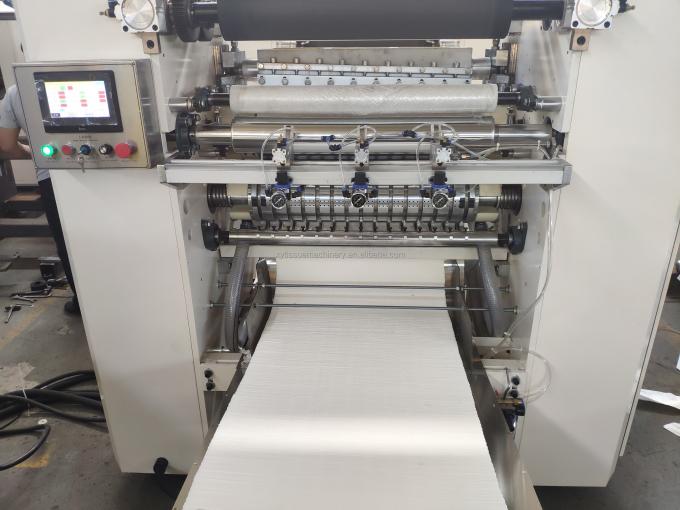

1. XY-BT-288N Automatic glue lamination N fold hand towel paper folding machine

Main functions:Main functions

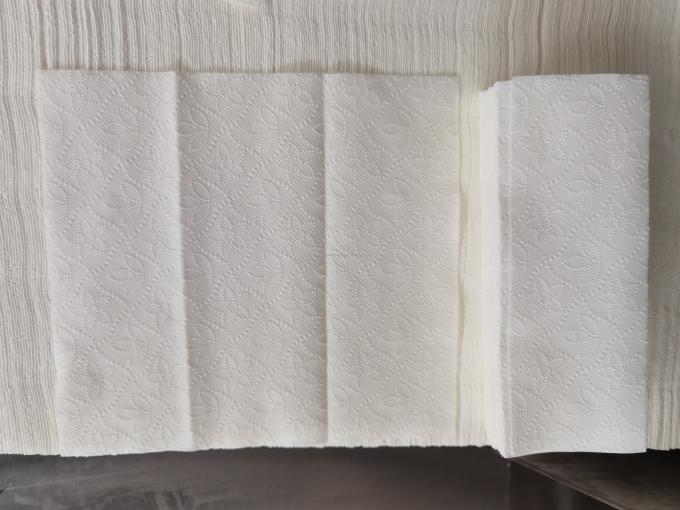

The jumbo rolls which have been slit into the desired width are cut by the slitting cylinders, and then inter folded into inter overlapped N fold hand towel sheets. This machine have automatic marking functions. It features of high speed , nice folding and easy operation .
1. Wallboard rack and Machine running stability is extremely good fast
2. Make various products width as requirement .

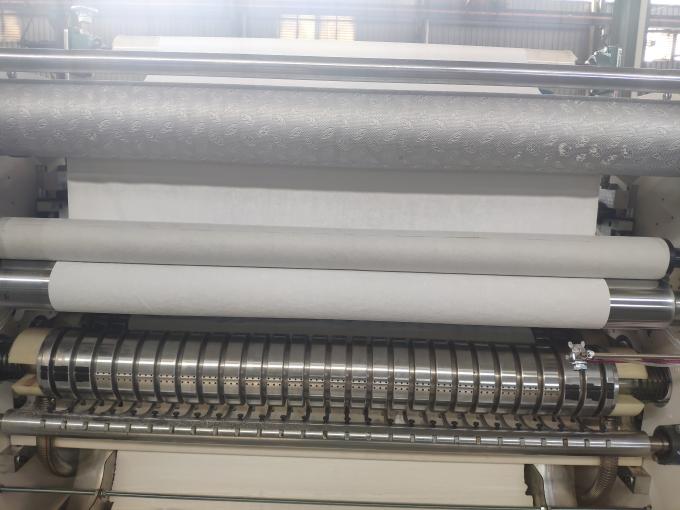

3. Equipped with embossing unit to keep the plies together
4. The machine will stop when the paper broken. It avoid waste caused by no paper or paper broken.

Dot To Dot Embossing Glue Lamination N Fold Hand Towel Paper Making Machine Production Line 1

Hand Towel Folding Machine Overview
1. Jumbo Roll stander with 2 units
2. Paper Tension Control system
3. Glue lamination embossing roll pattern design customize
4. Digital Counting sensors readout
5. Product Output panel

Machine Model	XY-BT-288N Automatic glue lamination N fold hand towel paper folding machine
Unfolding size(L*W)	230*230+-2 mm
Folding size(L*W)	76.6*230+-2 mm
Diameter of jumbo roll inner core	76.2mm (Other sizes are available)
Production speed	0-100m/min (Depending on the machine model )
Power	Frequency conversion speed regulator
Programmable controller	PLC computer controller
Folding type	Vacuum suction “ N” fold
Transmission unit	Timing belt and flat belt
Counter	Ink marked
Embossing unit	Steel to steel
Slitting unit	Pneumatic dot slitting
Pneumatic system	3HP Air compressor, mini air pressure 5 kg/cm2 (provided by customer)

2. XY-AI-15 Semi automatic hand towel bagging machine

Main functions

1. This machine replaces a manual operation.
2. After bagging, the product is orderly.

Machine model	XY-AI-15
Speed:	3-5 bags/min
Power:	0.2 Kw (220V 50Hz one phase)
Packing size	length 1150 mm, width 70 mm
Dimensions	1500850700mm

Dot To Dot Embossing Glue Lamination N Fold Hand Towel Paper Making Machine Production Line 6

3.XY-AI-300 Semi automatic hand towel cutting machine

Functions and features
This machine is the equipment for cut hand towel paper.
The machine is compose with stander, saw blade drive, adjustment, tension, saw blade grind, operation table and hand table. It is enjoy compact structure, stable running and convenient operation.

Main technology parameter:
Power: 2.2KW (380V 50Hz)
Production speed: 30-60 cuts /min
Cutting width:80~150mm(Big:80~250mm)
Overall size (m ): 1.6x0.6x1.8 (LxW xH)
Weight: About 0.6 T

Dot To Dot Embossing Glue Lamination N Fold Hand Towel Paper Making Machine Production Line 7

Cutting speed	20-40 cuts/minute
hand towel length	420-1200 mm(it can be made according to customer request)
hand towel width	≦150mm
hand towel	80-250mm
Cutting tolerance	±1.5mm
Power supply	2.2kw 380V 50Hz
Overall size	1600x600x1800mm
Machine weight	600KG

Cutting speed	20-40 cuts/minute
Toilet log length	1200-2000 mm(it can be made according to customer request)
Finished toilet roll length	≦300mm
Finished toilet roll diameter	80-250mm
Cutting tolerance	±1.5mm
Power supply	2.2kw 380V 50Hz
Overall size	1600x600x1800mm
Machine weight	600KG

Technical performance characteristic:

This machine is the equipment for cutting paper.The main function is to toilet paper,kitchen towel paper,maxi roll and hand towel paper into various kinds of standard small rolls.

Cutting speed	20-40 cuts/minute
Toilet log length	1200-2000 mm(it can be made according to customer request)
Finished toilet roll length	≦300mm
Finished toilet roll diameter	80-250mm
Cutting tolerance	±1.5mm
Power supply	2.2kw 380V 50Hz
Overall size	1600x600x1800mm
Machine weight	600KG

Q: Are you trading company or manufacturer
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to
quantity.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
