Name: Full Automatic Jumbo Paper Roll Slitter 300m/min 380V
Brand: Fujian Xinyun Machinery Development Co., Ltd.
SKU: XY-XX-A
Price: 43,685.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: XINYUN

Certification: CE

Model Number: XY-XX-A

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: 27370-60000 USD

Packaging Details: Standard export wooden pallet

Delivery Time: 50-60 days

Payment Terms: T/T

Supply Ability: 600 sets per year

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                full automatic jumbo paper slitter, jumbo roll slitter 300m/min, 380V paper roll rewinder


Automatic:	Full Automatic	Usage:	Jumbo Paper Roll Slitter And Rewinder
Pulp Material:	Wood Pulp	Packing:	Wooden Pallet
Speed:	280-300m/min	Warranty:	12 Months
Blade Material:	Alloy Steel	Slitting Method:	Razor Blade
Slitting Width:	Adjustable(minimum Width As 200mm)	Rewinding Core Diameter:	3 Inches
Power Supply:	380V, 50Hz, 3 Phase	Cutting Width:	100-1200mm
Size:	Custom	Weight:	5000kg

Automatic:	Full Automatic
Usage:	Jumbo Paper Roll Slitter And Rewinder
Pulp Material:	Wood Pulp
Packing:	Wooden Pallet
Speed:	280-300m/min
Warranty:	12 Months
Blade Material:	Alloy Steel
Slitting Method:	Razor Blade
Slitting Width:	Adjustable(minimum Width As 200mm)
Rewinding Core Diameter:	3 Inches
Power Supply:	380V, 50Hz, 3 Phase
Cutting Width:	100-1200mm
Size:	Custom
Weight:	5000kg

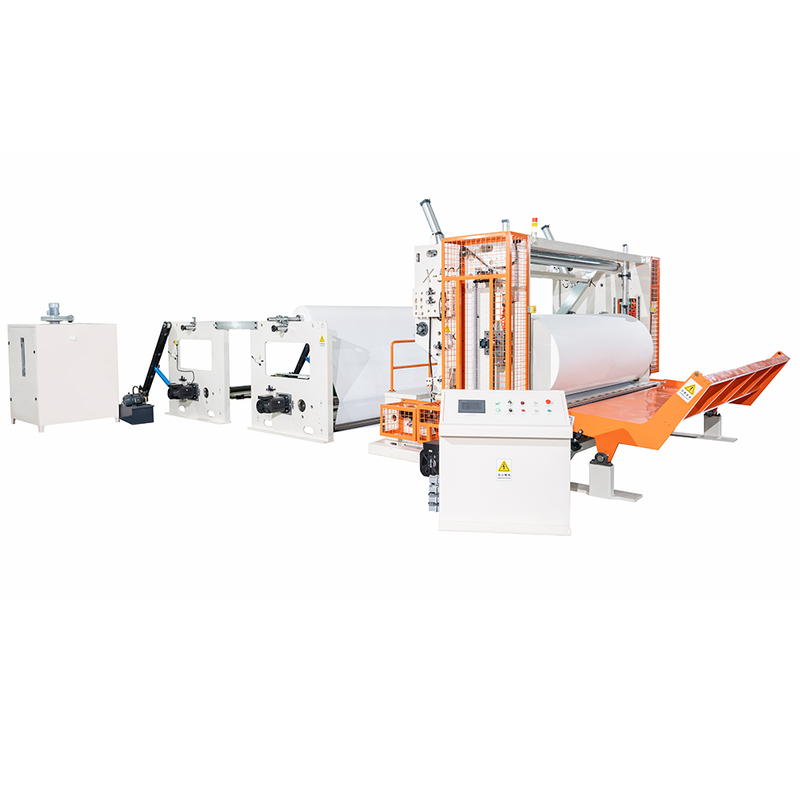

Full Automatic Jumbo Paper Roll Slitter 300m/min 380V

Big Jumbo Roll Paper Slitting Machine to Small Roll

Product Specifications

Attribute	Value
Automatic	Full automatic
Usage	Jumbo paper roll slitter and rewinder
Pulp material	Wood Pulp
Packing	Wooden pallet
Speed	280-300m/min
Warranty	12 months
Blade Material	Alloy Steel
Slitting Method	Razor Blade
Slitting width	Adjustable (minimum width as 200mm)
Rewinding Core Diameter	3 inches
Power Supply	380V, 50Hz, 3 Phase
Cutting Width	100-1200mm
Size	Custom
Weight	5000kg

Key Features

Air-shaft reeling system for easy paper pipe positioning
Steel-against-steel press-edge system with independent cylinder adjustment
Horizontal type unreeling stand with pneumatic lifter and flat belt conveyor
Individual tension adjustment unit on each jumbo roll
Front and back inching switch for safe and convenient operation
Optional tail-gluing and edge-trimming functions (available upon request)

Technical Parameters

Model	1092	1575	2000	2200	2400	2600	2800
Width of raw material	1200	1750	1950	2150	2350	2550	2750
Dia. of finished product (mm)	Φ90~1200 (the tension can be adjustable)
Dia. of raw material (mm)	Φ1200 (please specify other requirements)
Inner dia. of core of raw material	76.2 mm (please specify other requirements)
Processing capacity	280-300m/min
Reeling	Air shaft (one piece)
Unwinding stand	1-3 layer (please specify required layers)
Pneumatic system	3 air compressor, Min. pressure 5kg/cm² (prepared by clients)
Power	4.5-18 kw (380V 50HZ)
Overall size (mm) (L×W×H)	6200x2600x1800~6200x4000x1800 mm
Weight	1800~4800kg
