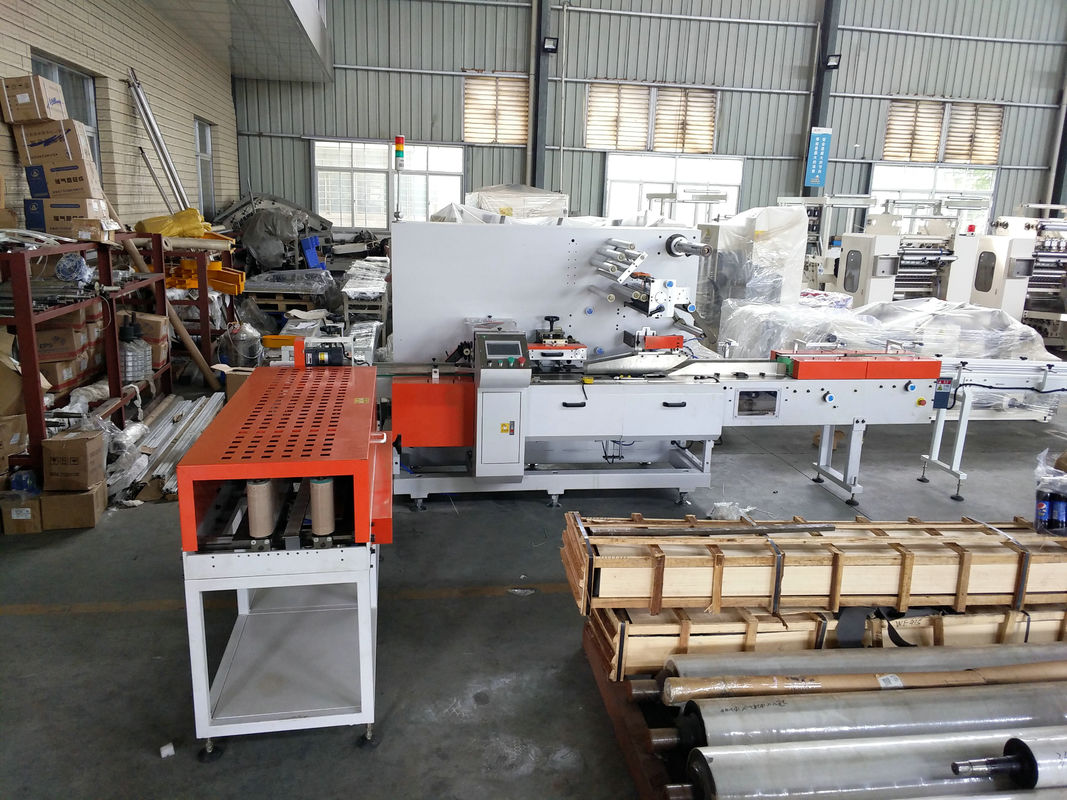

Factory Grade Automatic Single Toilet Roll Packing Machine At A Great Price

Product Details

Place of Origin: Quanzhou

Brand Name: Xinyun

Certification: CE

Model Number: XY-AI-503IZ

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 28800USD set

Packaging Details: In standard export packing wooden pallet

Delivery Time: 60days

Payment Terms: T/T

Supply Ability: 155 set/year

Get Best Price
Highlight:

Automatic toilet roll packing machine

,

Single toilet roll packing machine

,

paper roll packing machine 200pakcs/Min

Packing Speed:
100-200pakcs/Min
Max Width Of Film:
430mm
Toilet Roll Dimension(Length):
80-220mm
Toilet Roll Dimension(Diameter):
80-130mm
Total Power:
15.5kw 380V 50Hz 3phases
Weight:
1800kg
Machine Size(L*W*H):
5500*3300*1600mm
Material Of Film:
BOPP, Spp, CPP (as Usual, Use CPP)
Thickness Of Film:
0.018-0.03mm
Packing Speed:
100-200pakcs/Min
Max Width Of Film:
430mm
Toilet Roll Dimension(Length):
80-220mm
Toilet Roll Dimension(Diameter):
80-130mm
Total Power:
15.5kw 380V 50Hz 3phases
Weight:
1800kg
Machine Size(L*W*H):
5500*3300*1600mm
Material Of Film:
BOPP, Spp, CPP (as Usual, Use CPP)
Thickness Of Film:
0.018-0.03mm
Factory Grade Automatic Single Toilet Roll Packing Machine At A Great Price

XY-AI-503IZ High-Quality Factory-Grade Automatic Single Toilet Paper Roll Packing Machine at a Great Price


Product Description

Single roll paper automatic packing machine is suitable for single toilet paper roll with core or coreless, kitchen tissue, fully automatic packing, Paper feeding, film feeding, longitudinal sealing, cutting, coreless paper exhaust, reversing operation actions are driven by servo control method that has complete run function configuration, high efficiency, simple operation, specifications for a wide range, quick changeover specifications, convenient maintenance low use cost, and other the advantages.
Packing core toilet paper stable production speed up to 180 pcs/ min.
Packing coreless toilet paper stable production speed of up to 150 pcs/ min. Only electronic setting, free conversion is done for tissue length between 90 mm to 150 mm

Video Link: https://youtu.be/ifHmmLdCMJU
Factory Grade Automatic Single Toilet Roll Packing Machine At A Great Price 0

Product Parameter


Packing speed 100-200packs/min
Max width of film430mm
Toilet roll dimensionLength:80-220mm Diameter:80-130mm
Total Power15.5KW 380V 50HZ 3phases
Weight 1800KG
Machine size(L*W*H)5500*3300*1600mm
Material of filmBOPP, SPP, CPP(as usual, use CPP)
Thickness of film 0.018-0.03mm


Detailed Pictures

Factory Grade Automatic Single Toilet Roll Packing Machine At A Great Price 1
Factory Grade Automatic Single Toilet Roll Packing Machine At A Great Price 2
Factory Grade Automatic Single Toilet Roll Packing Machine At A Great Price 3
Factory Grade Automatic Single Toilet Roll Packing Machine At A Great Price 4
Related Machines

XY-TQ-B Automatic toilet paper making machine
Video Link: https://youtu.be/DhqS5jc-Los
Factory Grade Automatic Single Toilet Roll Packing Machine At A Great Price 5
XY-AI-400 High Speed Toilet Paper Cutting Machine
Video Link: https://youtu.be/8z4ggE2Tv2o
Factory Grade Automatic Single Toilet Roll Packing Machine At A Great Price 6

Aftersale service

Good service: Any question from a customer will be replied to within 24 hours.
For all the machines we sell, we will offer a one-year guarantee for free and all life-long maintenance.
We deliver a USB dish of Operation Video with the machine, which will help customers to work the machine easily.
After the machines arrive, the sellers shall send technicians to install the production line(if needed).
The buyer shall pay for their round-trip air tickets from China factory to the buyer's factory, the charge of visa, food, transportation, and accommodation in the buyer's city.
